干湿循环下红层土石混合料强度及变形特性的试验研究

张俊云 张乐 高福洲 唐永吉 何卓岭 王鹰

张俊云, 张乐, 高福洲, 唐永吉, 何卓岭, 王鹰. 干湿循环下红层土石混合料强度及变形特性的试验研究[J]. 西南交通大学学报, 2023, 58(6): 1394-1404. doi: 10.3969/j.issn.0258-2724.20220343
引用本文: 张俊云, 张乐, 高福洲, 唐永吉, 何卓岭, 王鹰. 干湿循环下红层土石混合料强度及变形特性的试验研究[J]. 西南交通大学学报, 2023, 58(6): 1394-1404. doi: 10.3969/j.issn.0258-2724.20220343
ZHANG Junyun, ZHANG Le, GAO Fuzhou, TANG Yongji, HE Zhuoling, WANG Ying. Experimental Study on Strength and Deformation Characteristics of Red-Bed Soil-Rock Mixture Under Wetting-Drying Cycles[J]. Journal of Southwest Jiaotong University, 2023, 58(6): 1394-1404. doi: 10.3969/j.issn.0258-2724.20220343
Citation: ZHANG Junyun, ZHANG Le, GAO Fuzhou, TANG Yongji, HE Zhuoling, WANG Ying. Experimental Study on Strength and Deformation Characteristics of Red-Bed Soil-Rock Mixture Under Wetting-Drying Cycles[J]. Journal of Southwest Jiaotong University, 2023, 58(6): 1394-1404. doi: 10.3969/j.issn.0258-2724.20220343

干湿循环下红层土石混合料强度及变形特性的试验研究

doi: 10.3969/j.issn.0258-2724.20220343
基金项目: 国家自然科学基金(42072313);四川省科技计划(2021YFS0321);四川省交通运输科技项目(2021-A-02)
详细信息
    作者简介:

    张俊云(1974—),男,副教授,博士,研究方向为土力学与基础工程,E-mail:zjy74@126.com

  • 中图分类号: U416.1

Experimental Study on Strength and Deformation Characteristics of Red-Bed Soil-Rock Mixture Under Wetting-Drying Cycles

  • 摘要:

    为研究干湿循环下红层土石混合料的劣化规律,以取自四川盆地的红层土石混合料为研究对象,通过静态崩解试验,探讨不同粒径红层软岩块石的崩解特征;对2组红层土石混合路基填料原始级配缩尺,通过叠环式剪切试验,研究干湿循环次数对红层土石混合料黏聚力、内摩擦角、剪胀率和剪切模量等指标的影响. 研究结果表明:红层软岩块石遇水崩解显著,崩解过程可分为剧烈段、过渡段和稳定段,崩解剧烈段块石含量降低近70%;粒径较大时,块石受结构面影响更强,崩解更彻底;随干湿循环次数的增加,抗剪强度在崩解剧烈段明显降低,过渡段基本不变,稳定段略有回升;块石崩解后,其咬合作用显著降低,表观黏聚力急剧减小,静电引力和固化胶结使黏聚力轻微增大,崩解物间的摩擦和重定向排列使内摩擦角轻微增大;最大粒径和含石量显著降低,法向应力下土石混合料更密实,剪胀率明显降低;骨架-密实结构转变为悬浮-密实结构,剪切模量明显降低;干湿循环下黏聚力和剪胀率劣化更明显,内摩擦角的劣化受块石粒径影响最大,剪切模量的劣化受块石粒径影响最小;路堤填筑前,对红层土石混合料进行2次崩解处理,以削弱其受降雨-蒸发循环作用的不利影响.



  • 图 1  红层土石混合料的各粒组土样

    Figure 1.  Soil samples of each particle group of red-bed soil-rock mixture (RB-SRM)

    图 2  红层土石混合料的级配曲线

    Figure 2.  Gradation curves of RB-SRM

    图 3  红层土石混合料的干湿循环途径

    Figure 3.  Wetting-drying cycle method of RB-SRM

    图 4  静态崩解试验装置

    Figure 4.  Apparatus of static disintegration test

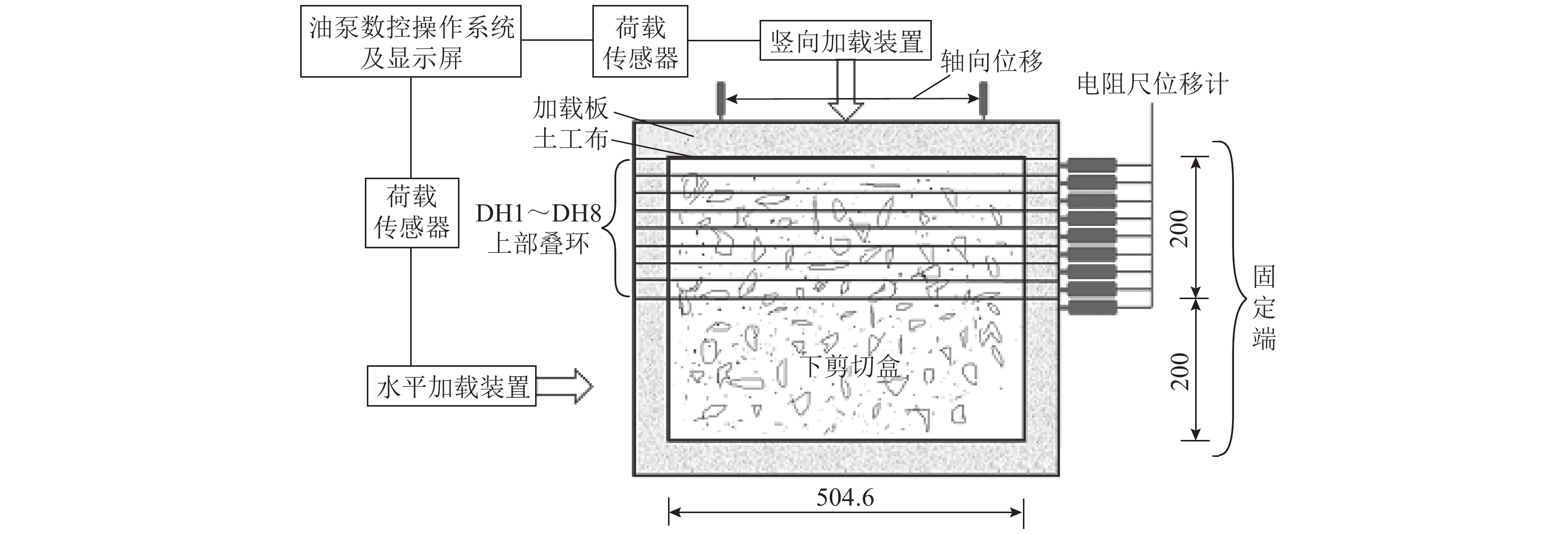

    图 5  DHJ50-2型叠环式剪切试验机

    Figure 5.  Apparatus of DHJ50-2 laminated shear test

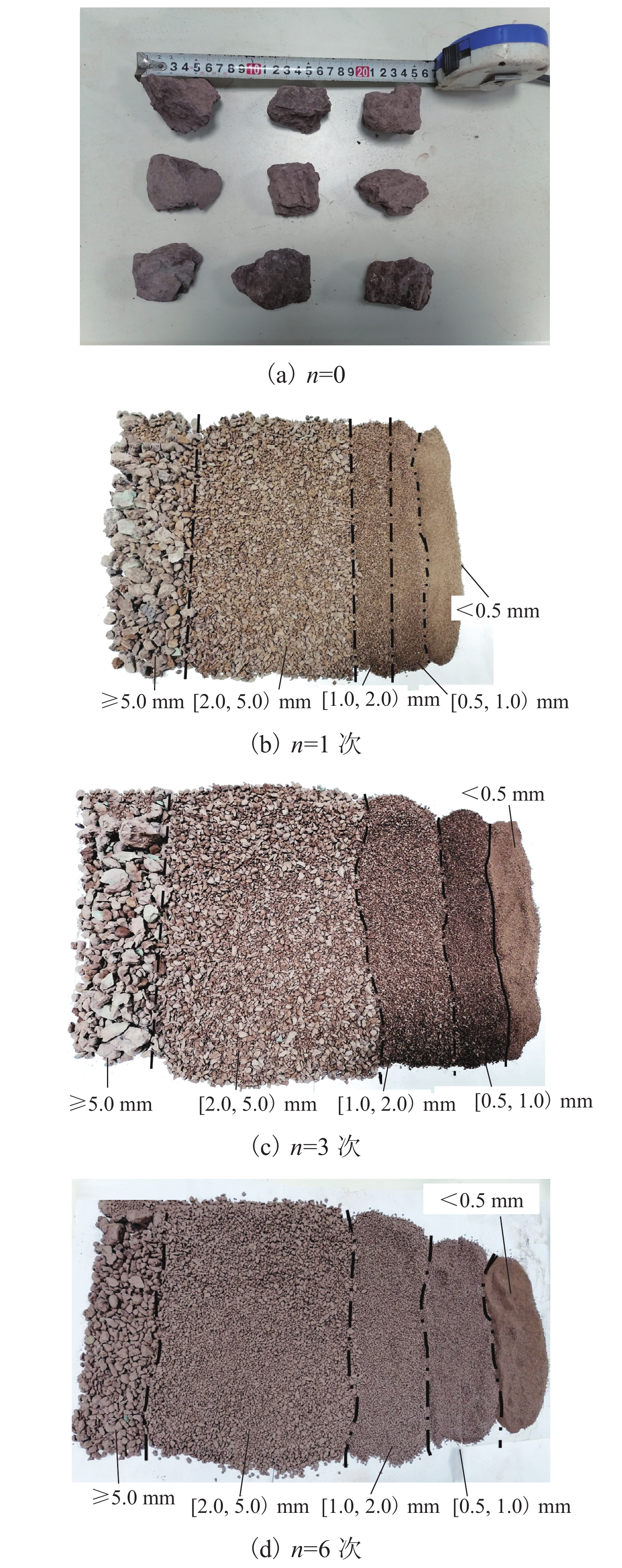

    图 6  红层软岩块石静态崩解现象

    Figure 6.  Static disintegration of red-bed soft rock blocks

    图 7  干湿循环下崩解物粒组含量变化曲线

    Figure 7.  Curves of the content of disintegrated RB-SRM with different particle sizes under wetting-drying cycles

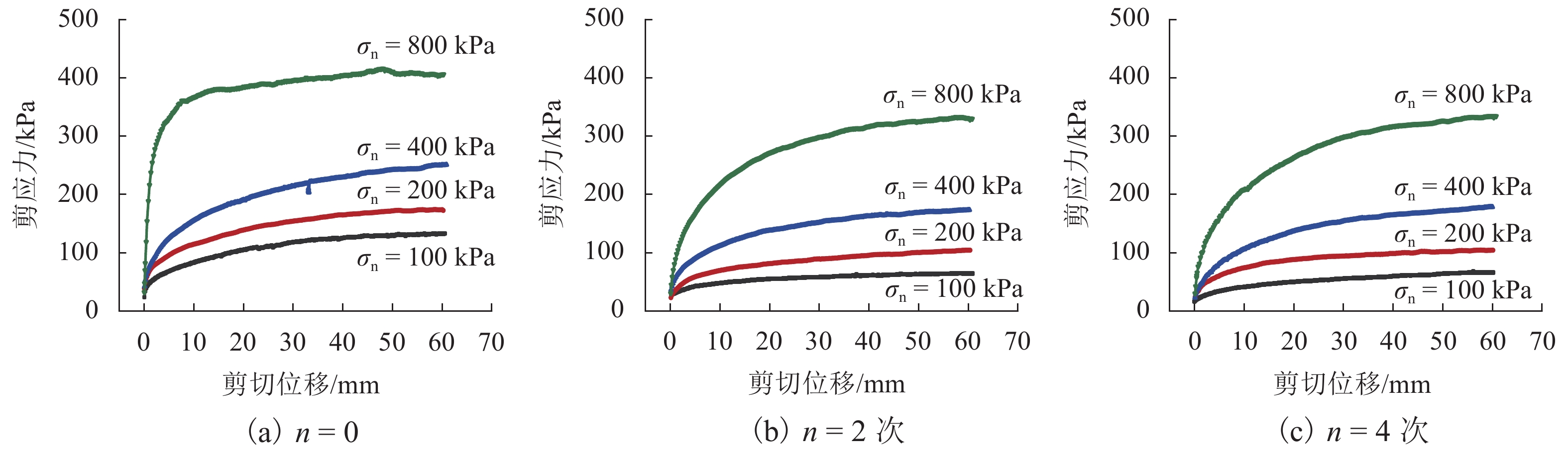

    图 8  红层土石混合料剪应力-剪切位移曲线

    Figure 8.  Curves of Shear stress-shear displacement of RB-SRM

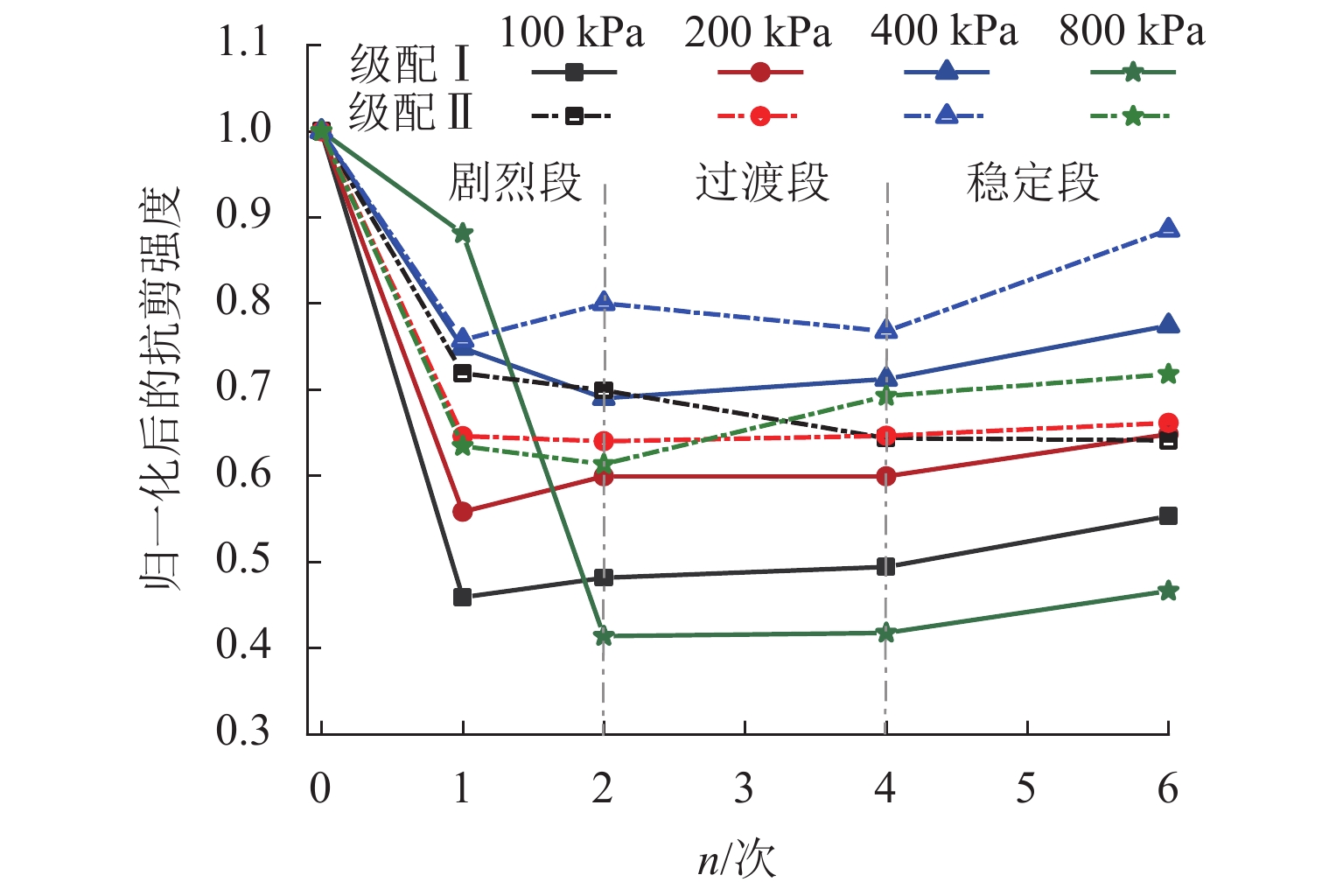

    图 9  干湿循环下归一化强度劣化曲线

    Figure 9.  Curves of normalized strength under wetting-drying cycles

    图 10  干湿循环下红层土石混合料的强度机理

    Figure 10.  Strength mechanism of RB-SRM under wetting-drying cycles

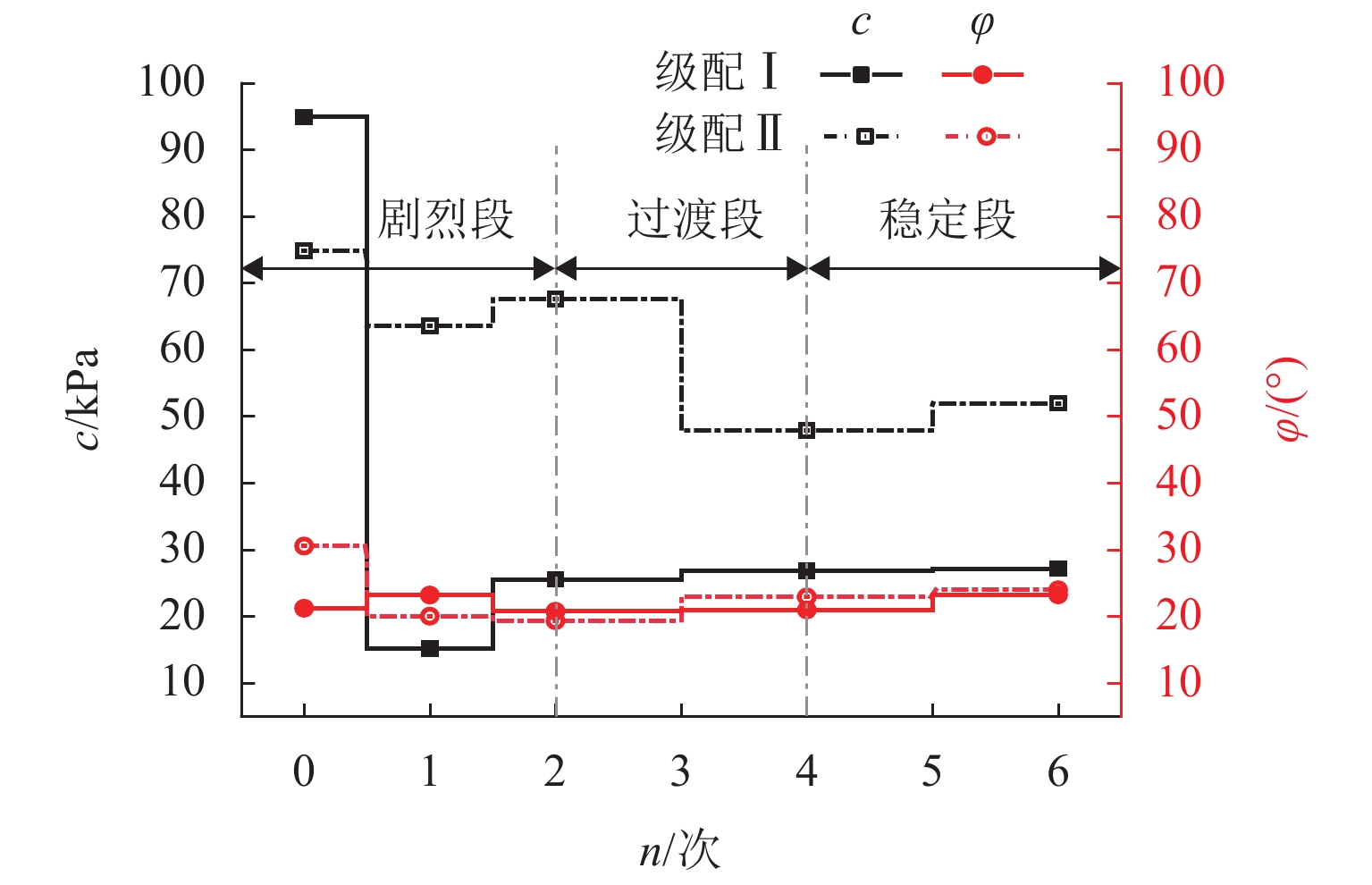

    图 11  干湿循环下强度指标水平中心梯度分布

    Figure 11.  Horizontal center gradient distribution of strength parameters under wetting-drying cycles

    图 12  干湿循环下剪胀率分布曲线

    Figure 12.  Curves of dilation rate under wetting-drying cycles

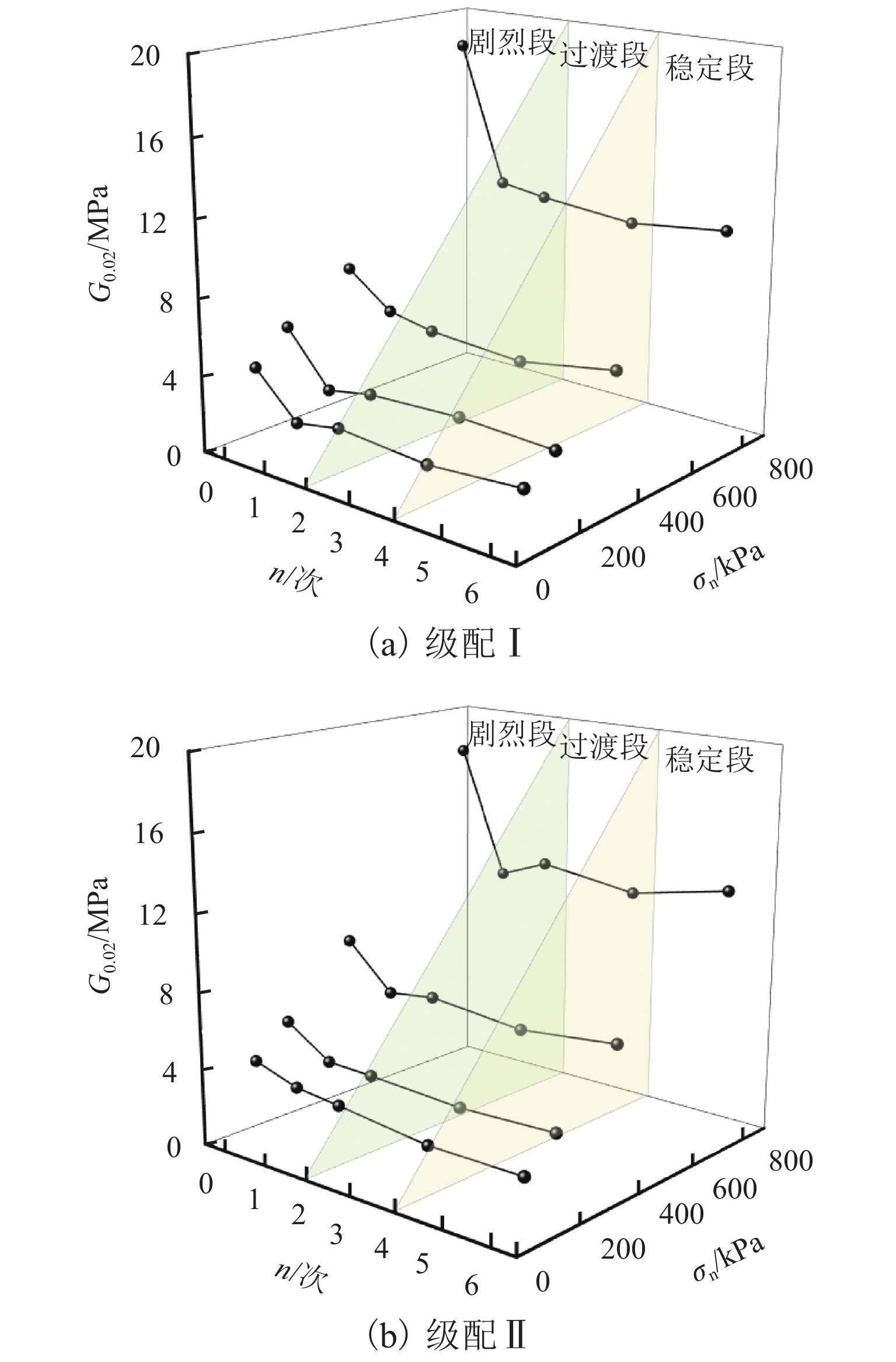

    图 13  干湿循环下剪切模量分布曲线

    Figure 13.  Curves of shear modulus under wetting-drying cycles

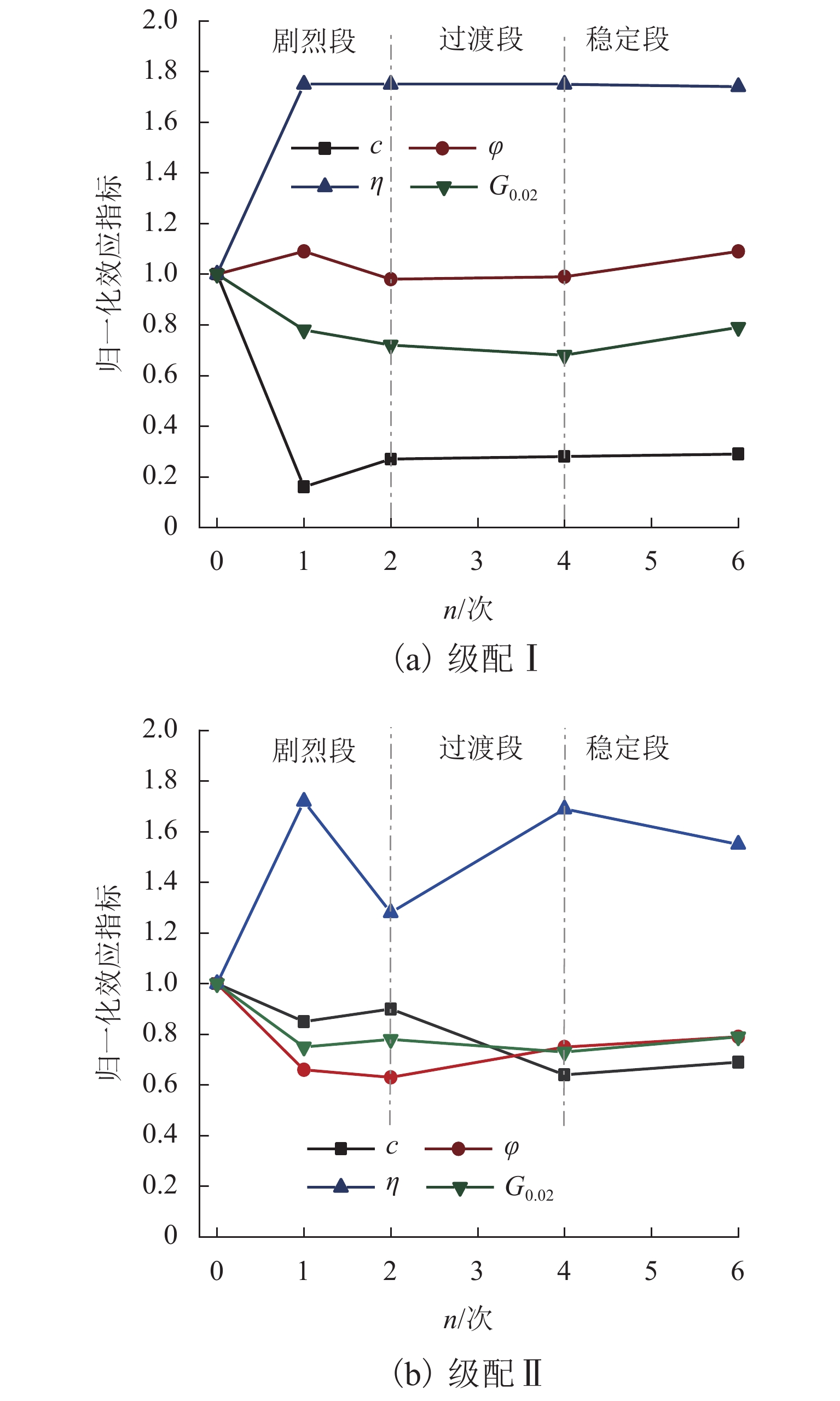

    图 14  干湿循环下归一化力学效应指标分布曲线

    Figure 14.  Curves of normalized mechanical parameters under wetting-drying cycles

    表  1  岩土体基本物理力学指标

    Table  1.   Basic physical and mechanical parameters of RB-SRM

    类型$\rho $/ (g•cm−3w/%${G_{\text{s}}}$c/kPaφ/(°)${\sigma _{\text{c}}}$/
    MPa
    黏土1.7816.672.7225.3227.07
    粉砂质泥岩2.561.92560.0038.406.83
    下载: 导出CSV

    表  2  干湿循环下红层土石混合料叠环式剪切试验方案

    Table  2.   Laminated shear test scheme of RB-SRM under wetting-drying cycles

    级配试验组n/次法向应力${\sigma _{\text{n}}}$/kPa
    级配 Ⅰ10100,200,400,800
    21100,200,400,800
    32100,200,400,800
    44100,200,400,800
    56100,200,400,800
    级配 Ⅱ60100,200,400,800
    71100,200,400,800
    82100,200,400,800
    94100,200,400,800
    106100,200,400,800
    下载: 导出CSV

    表  3  干湿循环下红层土石混合料的力学效应指标

    Table  3.   Mechanical parameters of RB-SRM under wetting-drying cycles

    类型n/次c/kPa$\varphi $/(°)$\eta $${G_{{\text{0}}{\text{.02}}}}$/MPa
    级配Ⅰ094.8721.24−0.097.78
    115.1723.20−0.156.06
    225.5520.79−0.155.60
    426.8020.97−0.155.29
    627.1723.24−0.156.15
    级配Ⅱ074.8530.56−0.079.02
    163.5820.04−0.126.75
    267.5319.37−0.097.07
    447.8422.93−0.126.60
    651.9624.01−0.117.13
    下载: 导出CSV
