Emergy Analysis Based Method for Site Selection of Photovoltaic Plants
-
摘要:
为合理指导光伏电站的有序规划及可持续开发，提出一种以能值分析为基础的光伏电站选址及生态经济收益评估方法. 通过能值分析与地理信息系统（GIS）空间分析相结合，对内蒙古12个盟市地区光伏发电可利用土地生态经济收益情况做出分析. 分析结果表明：呼和浩特、包头等内蒙古中西部城镇密集地区体现出更为优异的可开发价值，而经过对比发现由输电距离所导致的输电损失占据了各项能值投入中的决定性比重；此外，对于绝大部分可利用地块而言，与城镇或建成环境越近，其生态经济收益也相对越高，而在能源结构转型的过程中，光伏土地占用与不断扩张的城市建设用地需求，或将成为未来城市规划与光伏能源规划所面临的首要矛盾.
Abstract:Following the guideline of the reasonable planning and sustainable development of photovoltaic (PV) power plants, an emergy analysis based method is proposed for the site selection and eco-economic benefit assessment of PV power plants. Through the combination of emergy analysis and geographic information system (GIS) spatial analysis, the eco-economic benefits of land available for PV generation in 12 league cities of Inner Mongolia China are analyzed. The result shows that: Hohhot, Baotou and other densely populated areas in central and western Inner Mongolia show more excellent development value. Through comparison, it is found that the transmission loss caused by transmission distance accounts for a decisive proportion of all emergy inputs. In addition, for most of available land plots, the eco-economic benefits are relatively higher when they are close to urban towns or built environment. In the process of structural transformation of energy, the occupation of PV land and the expanding demand for urban construction land may become the primary imbalance between urban planning and PV energy planning in the future.
-

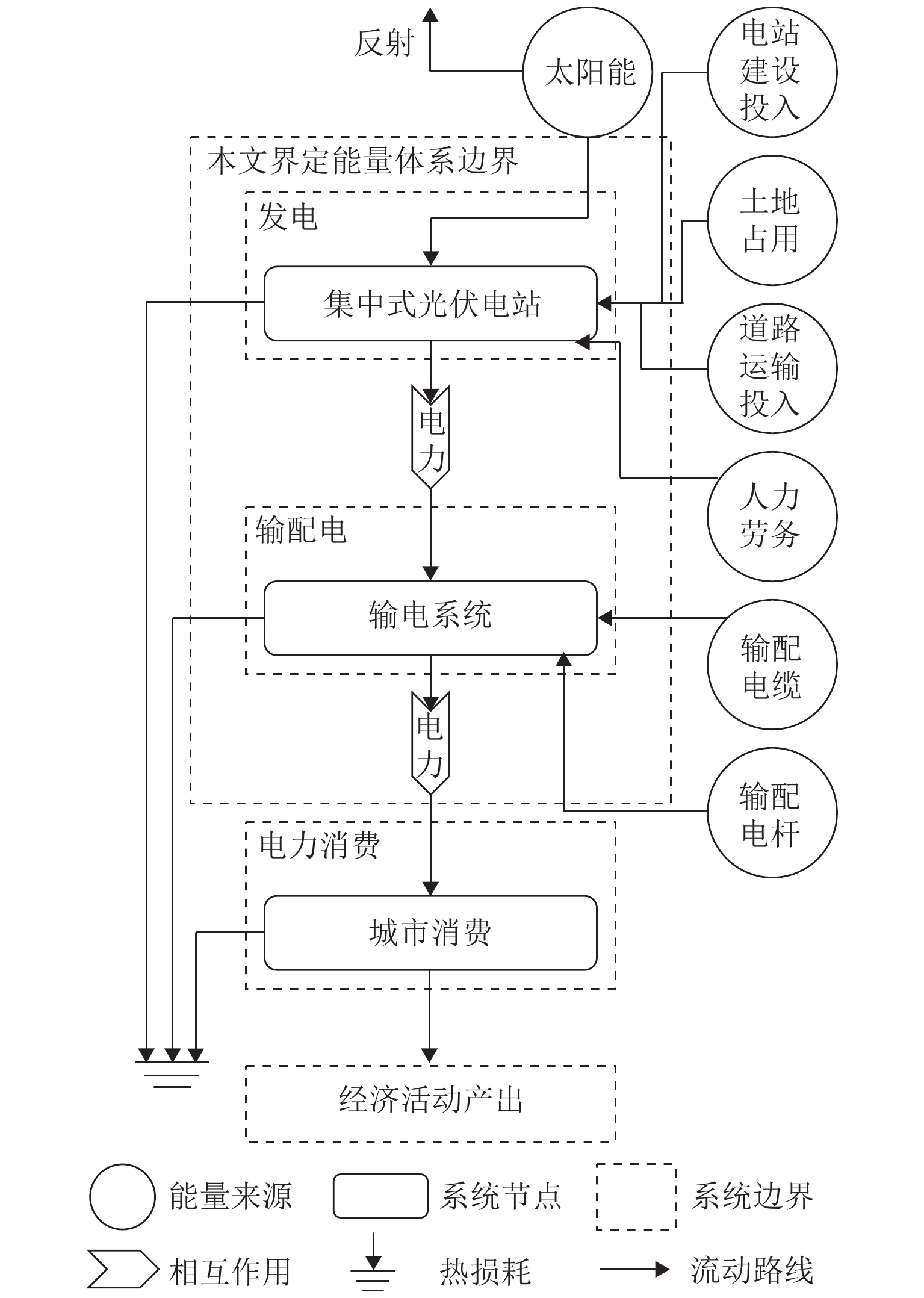

图 1 光伏发电能量系统边界示意
Figure 1. Energy system boundary of photoroltaic (PV) power generation

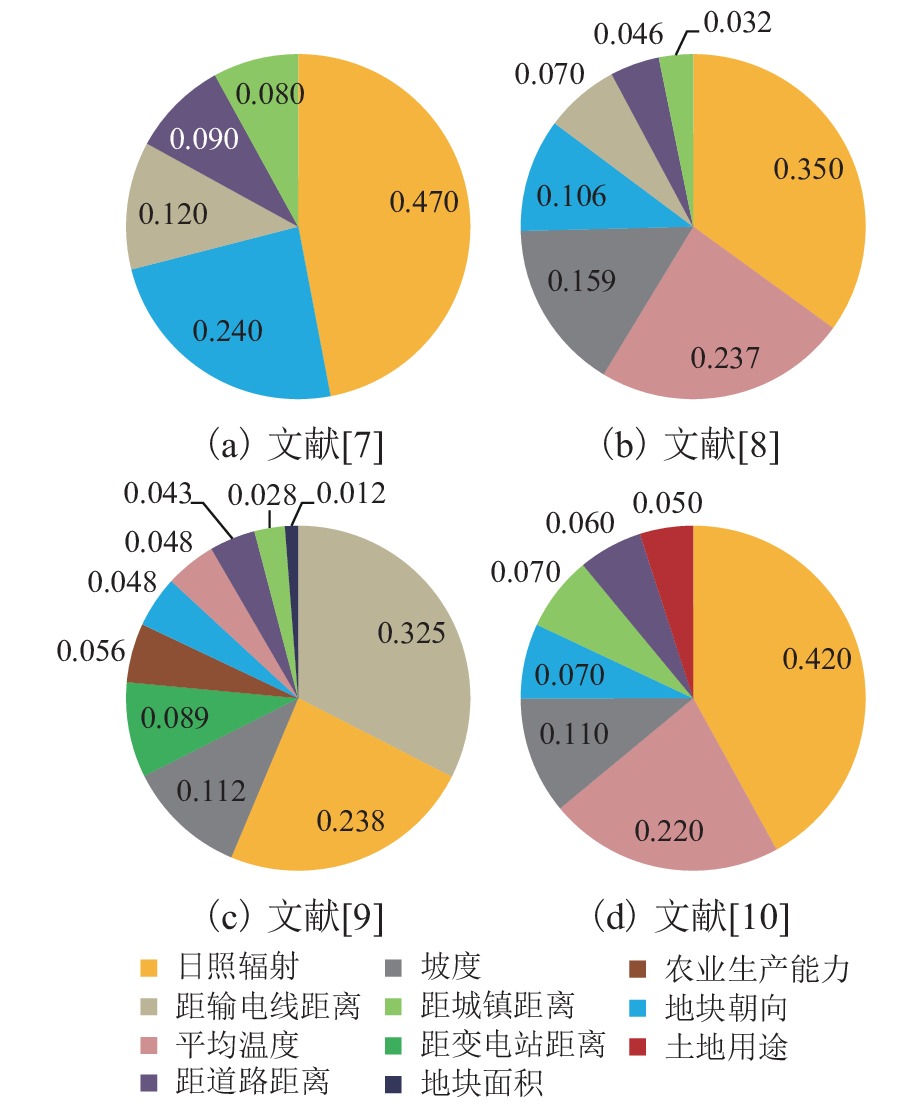

图 2 不同研究中光伏选址决策权重对比
Figure 2. Comparison of decision weights in PV site selection in different studies

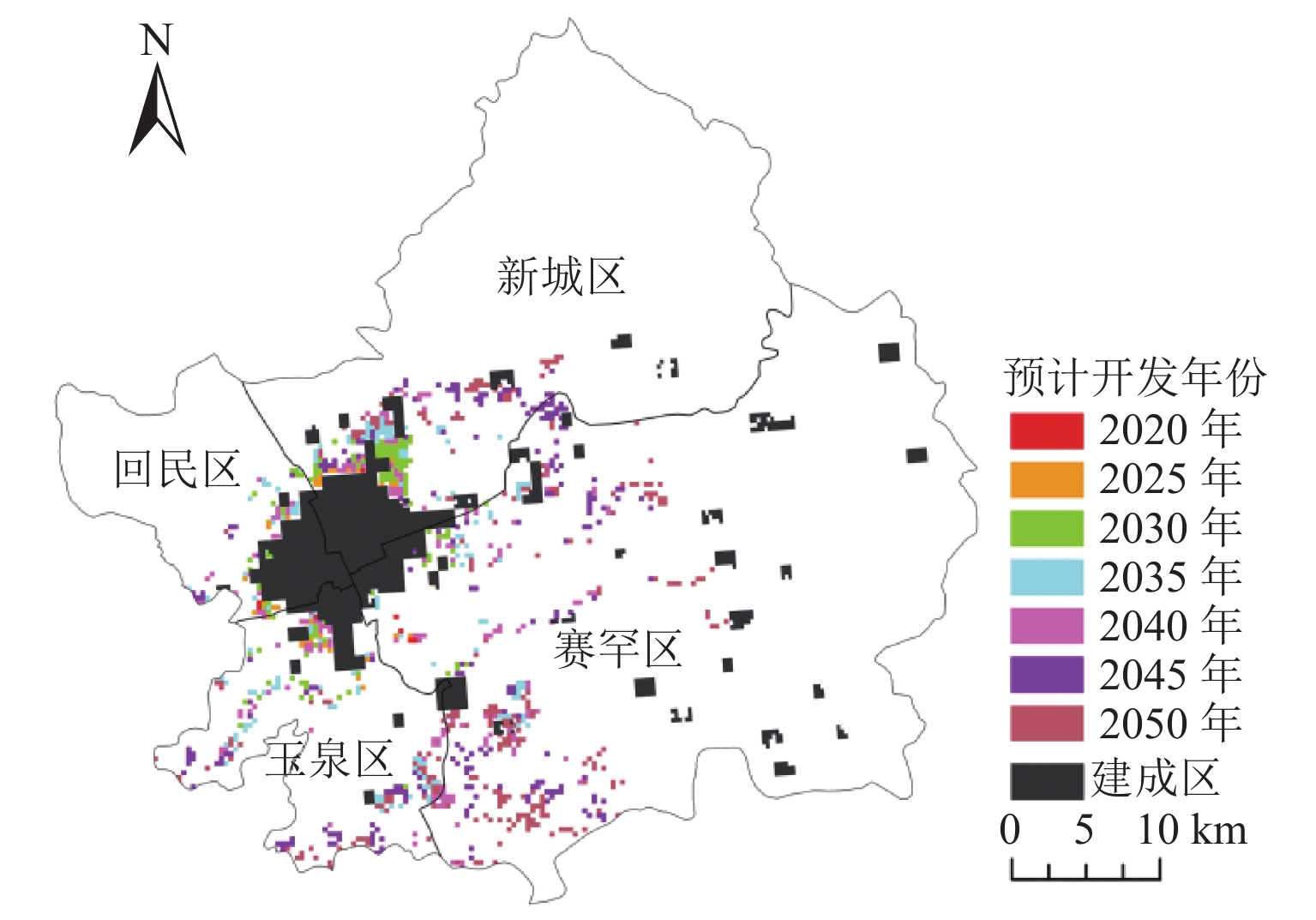

图 3 呼和浩特市2020年—2050年光伏用地发展预测
Figure 3. Prospect of PV land development in Hohhot from 2020 to 2050
表 1 本文估量化方法
Table 1. Methods for evaluation used in this study
量化类项 量化公式或取值方法 年电力能值产出/（sej·年−1） ${ {E} }_{ {{\rm{t}}} }={E}{ {V} }_{ {{\rm{e}}} }$ 光伏阵列间距/mm D，文献[36] 光伏安装面积/m2 ${ {S}={A} }_{ {{\rm{pi}}} }{L}/{D}$ 光伏装机容量/W ${ {C}={C} }_{ {{\rm{p}}} }{S}/{ {A} }_{ {{\rm{p}}} }$ 年光伏发电量/（kW·h） ${E}={S}{ {G} }_{ {{\rm{ti}}} }{j}{K}$ 电站第 i 项物质投入/（g·m−2） Mi，据文献[20]折算 第 i 项物质能值转换率/
（sej·g−1）Vi 电站建设能值投入/
（sej·年−1）${ {E} }_{ { {\rm{s} } } }={S}(1.02{ {\displaystyle\sum } }_{ {i}=1}^{ {n} }{ {M} }_{ {i} }{ {V} }_{ {i} } + { {C} }_{ { {\rm{L} } } }{ {V} }_{ { {\rm{L} } } })$ 道路建设能值投入/sej ${ { {E} }_{ {{\rm{rc}}} }={D} }_{ {{\rm{r}}} }{ {V} }_{ {{\rm{rc}}} }$ 运输能值投入/sej ${ {E} }_{ {{\rm{rt}}} }=2{ {D} }_{ {{\rm{r}}} }[{C}/({ {C} }_{ {{\rm{P}}} }{ {F} }_{ {{\rm{v}}} }\left)\right]{ {Q} }_{ {{\rm{s}}} }{ {\rho } }_{ {{\rm{f}}} }{ {V} }_{ {{\rm{f}}} }$ 道路及运输能值投入/sej ${ { {E} }_{ {{\rm{r}}} }={E} }_{ {{\rm{rc}}} } + { {E} }_{ {{\rm{rt}}} }$ 导线截面面积/mm2 ${a}={I}/{ {J} }_{ {{\rm{ec}}} }$ 电站年均有功功率/（kW·年−1） $ {P}={E}/{T} $ 输电线路线电流/A ${I}={P}/(\sqrt{3}{U{\rm{cos}}}\;{\phi }{})$ 导线电阻/Ω ${R}={r}{ {D} }_{ {{\rm{t}}} }/{a}$ 输电线路热损失/kW $ {Q}=3{{I}}^{2}{R} $ 升压变电热损失/kW ${ { {P} }_{0}={\eta } }_{0}({P}-{Q})/{{\rm{cos}}}\;{\phi }$ 输电线路能值投入/sej ${ { {E} }_{ {{\rm{gc}}} }={D} }_{ {{\rm{t}}} }({ {\rho } }_{ {{\rm{cu}}} }{a}{ {V} }_{ {{\rm{ca}}} } + { {M} }_{ {{\rm{po}}} }{ {V} }_{ {{\rm{po}}} })$ 年输电损失能值折算/
（sej·年−1）${ {E} }_{ {{\rm{q}}} }={E}\left[\right({Q} + { {P} }_{0})/{P} + { {\eta } }_{ {{\rm{n}}} }]{ {V} }_{ {{\rm{e}}} }$ 土地占用能值投入/sej $ {{{E}}_{{{\rm{l}}}}={A}}_{{{\rm{pi}}}}{{L}}_{{{\rm{ci}}}}{{V}}_{{{\rm{c}}}} $ 年固碳量/（tC·m−2·年−1） Lci，依据文献[22-23]折算
下载: 导出CSV
表 2 本文能值转换率取值
Table 2. Unit emergy values used in this study
能值类项 能值转换率 来源 火力发电/(sej·(kW·h)−1) 1.03×1012 文献[20] 铝/（sej·g−1） 2.15×1010 文献[30] 玻璃/（sej·g−1） 3.20×109 文献[31] 硅/（sej·g−1） 1.39×1010 文献[20] 铜/（sej·g−1） 2.30×1011 文献[30] 粉尘/（sej·g−1） 1.23×1011 文献[20] 钢/（sej·g−1） 2.12×109 文献[30] 石灰石/（sej·g−1） 5.26×108 文献[32] 废气/（sej·g−1） 1.15×1014 文献[12] 盐酸/（sej·g−1） 2.14×108 文献[33] 货币/（sej·€−1） 1.02×1012 文献[34] 道路建设/（sej·km−1） 2.92×1018 文献[25] 柴油/（sej·kg−1） 3.52×1012 文献[32] 电缆（铜）/（sej·kg−1） 6.79×1010 文献[25] 电杆（钢）/（sej·kg−1） 6.72×1012 文献[25] 固碳/（sej·tC−1） 4.96×1014 文献[35]
下载: 导出CSV
表 3 各盟市光伏用地概况及2050年发展预测
Table 3. PV land survey and 2050 prospect of each league city
盟市 土地面积统计/km2 2050 年用电量预测/
（×109 kW·h）2050 年光伏用地面积/km2 分区
面积可开发
土地呼和浩特 55797 15929 3318.1 593.4 包头 45061 28101 10451.0 1872.2 呼伦贝尔 236431 17741 880.2 206.5 兴安盟 97904 20164 598.3 125.3 通辽 62749 7784 3478.7 729.9 赤峰 58250 5061 2218.0 449.4 锡林郭勒 170328 37332 1800.4 353.2 乌兰察布 51026 14189 6441.6 1247.6 鄂尔多斯 37530 16601 9625.4 1802.6 巴彦淖尔 83092 29458 1658.2 238.2 乌海 48620 17411 4933.4 987.4 阿拉善 199674 13874 1833.9 321.0 总计 1146462 223645 47237.2 8926.7
下载: 导出CSV
表 4 光伏度电能值构成及同火力发电对比
Table 4. Emergy composition per unit PV power generation and comparison with thermal power
EROI 度电能值构成/（sej·(kW·h)−1） 光伏度电能值/
（sej·(kW·h)−1）占同等火力
发电比例/%电站建设 土地占用 道路/运输 新增输电线路 输电线损 1.00 6.40×1011 2.14×109 3.84×1011 2.94×109 2.21×1011 1.25×1012 100.0 1.00 6.76×1011 1.75×109 3.49×1011 3.43×109 2.68×1011 1.30×1012 100.0 1.20 6.63×1011 6.55×108 1.57×1011 1.12×109 2.44×1011 1.07×1012 79.8 1.20 6.89×1011 8.05×108 1.13×1011 2.39×109 3.52×1011 1.16×1012 78.1 1.40 6.49×1011 9.12×108 1.82×1010 1.54×109 2.44×1011 9.13×1011 65.0 1.40 6.17×1011 5.87×108 4.69×1010 1.10×109 2.56×1011 9.22×1011 64.7 1.60 5.68×1011 4.78×108 1.91×1010 2.51×108 1.57×1011 7.44×1011 57.0 1.60 5.66×1011 5.22×108 2.08×1010 2.73×108 1.57×1011 7.44×1011 57.0 1.73 5.42×1011 1.50×108 0 3.75×107 1.27×1011 6.69×1011 52.6 平均值 6.41×1011 7.06×108 6.00×1010 1.48×109 2.60×1011 9.63×1011 68.3 注：数据为基于本文评估结果的抽样数据示意，平均值统计包含全部EROI大于1.00地块.
下载: 导出CSV
-
