| Citation: | WANG Ping, WANG Xiaoming, HE Qing, AN Boyang. Analysis of Wheel−Rail Frictional Temperature Rise Considering Temperature-Dependent Material Properties and Damage Discontinuities[J]. Journal of Southwest Jiaotong University, 2026, 61(3): 986-994. doi: 10.3969/j.issn.0258-2724.20260146
|

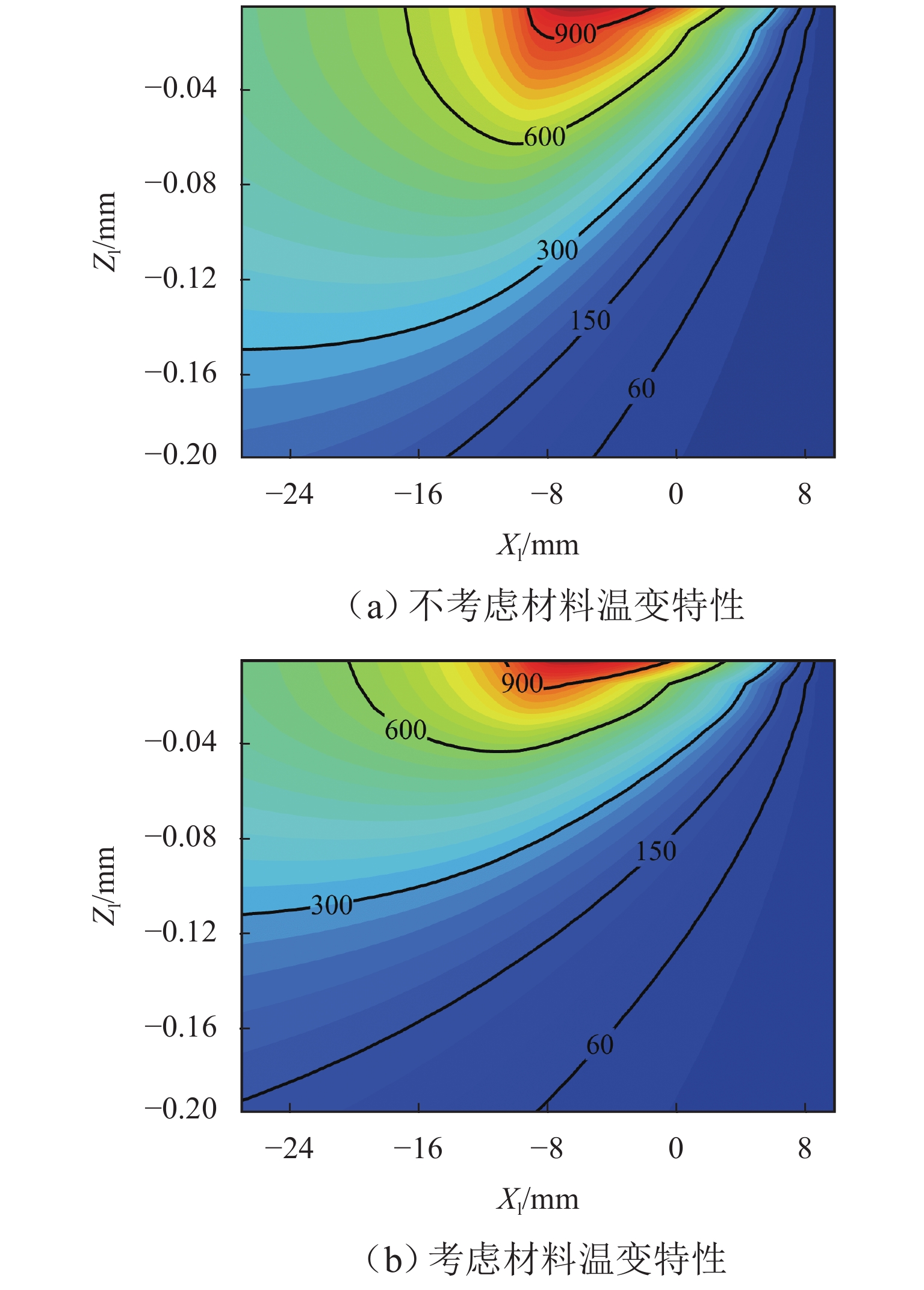

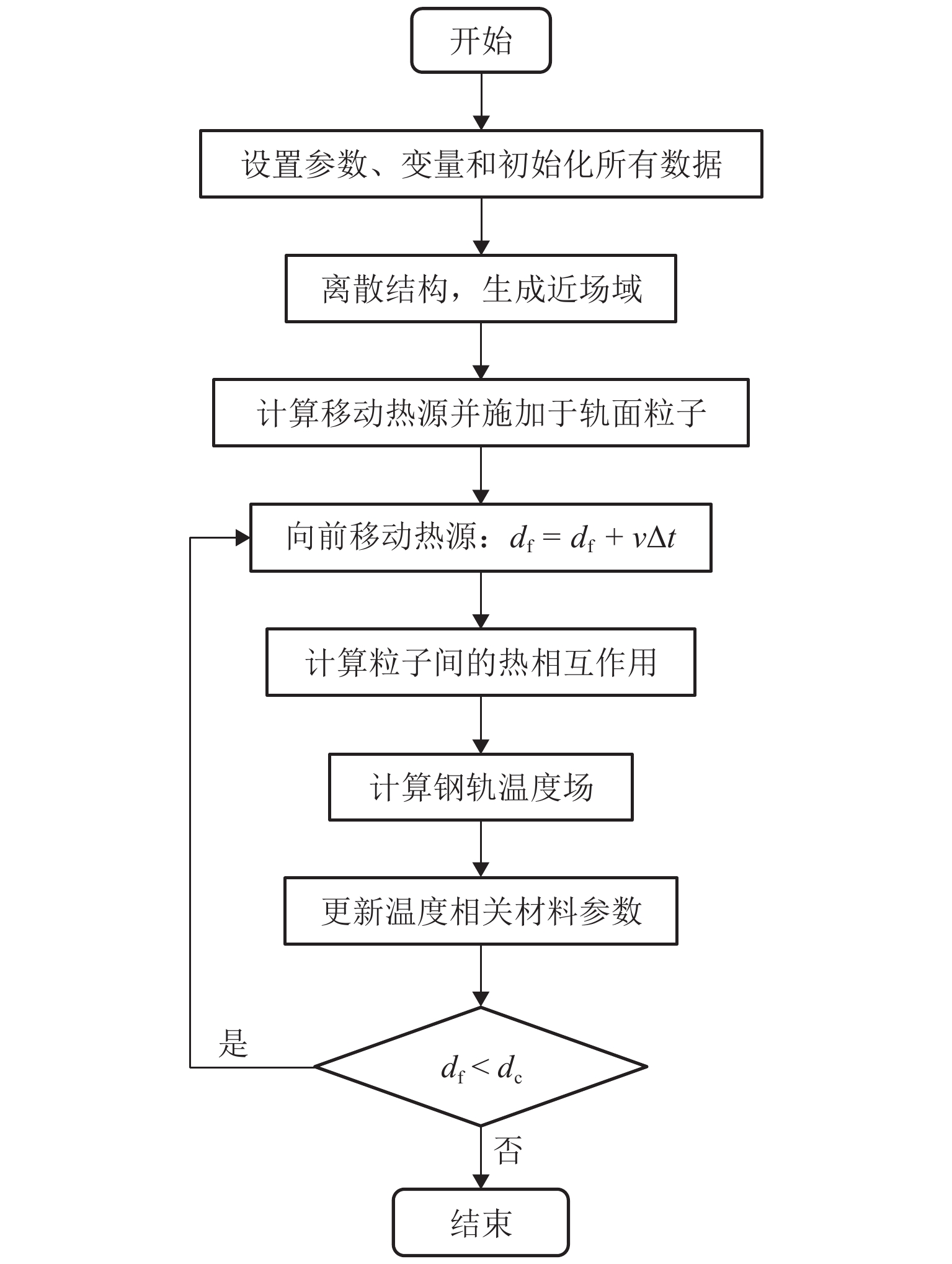

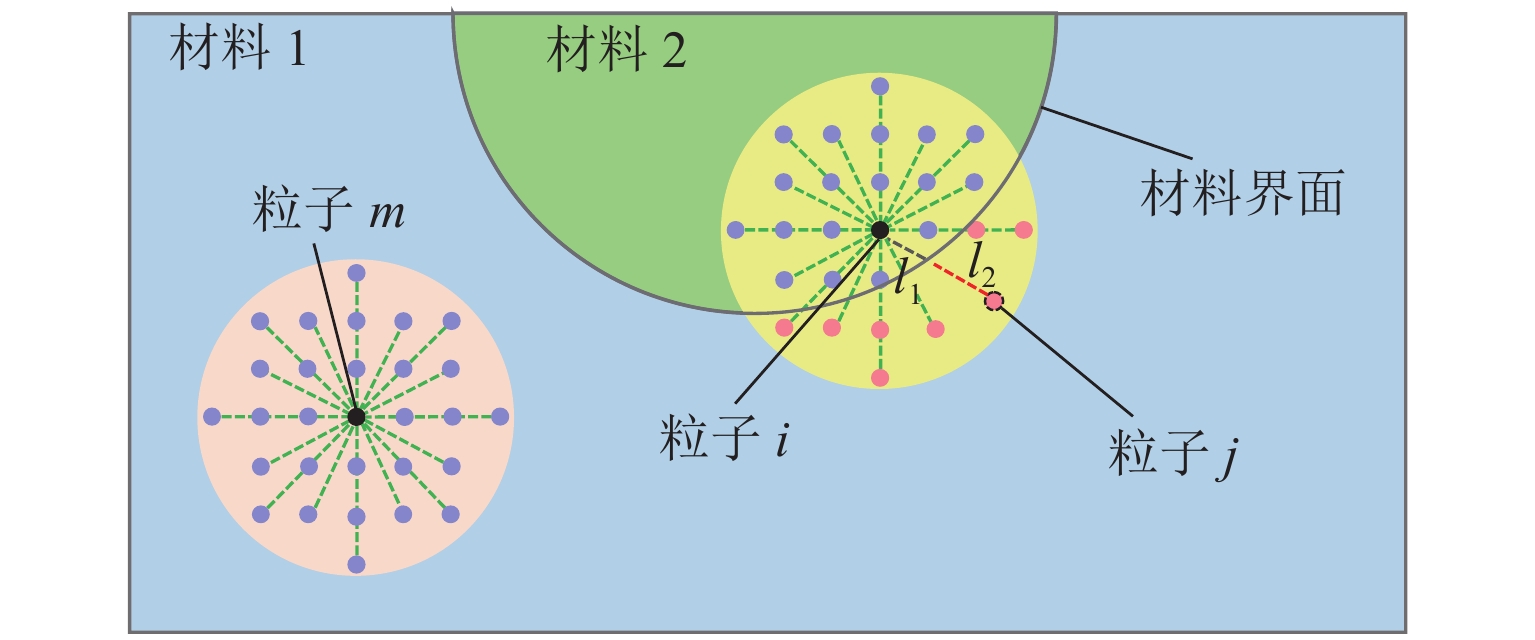

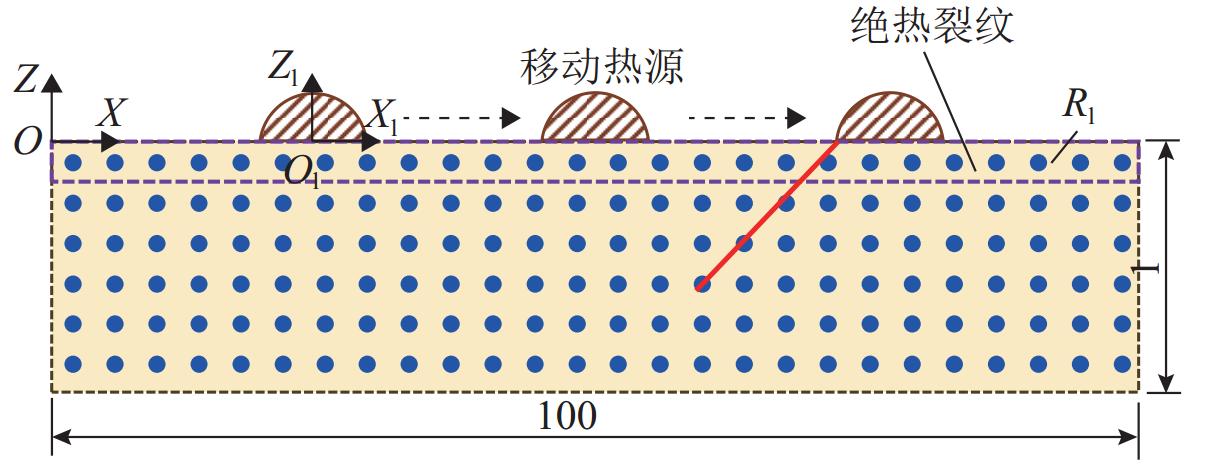

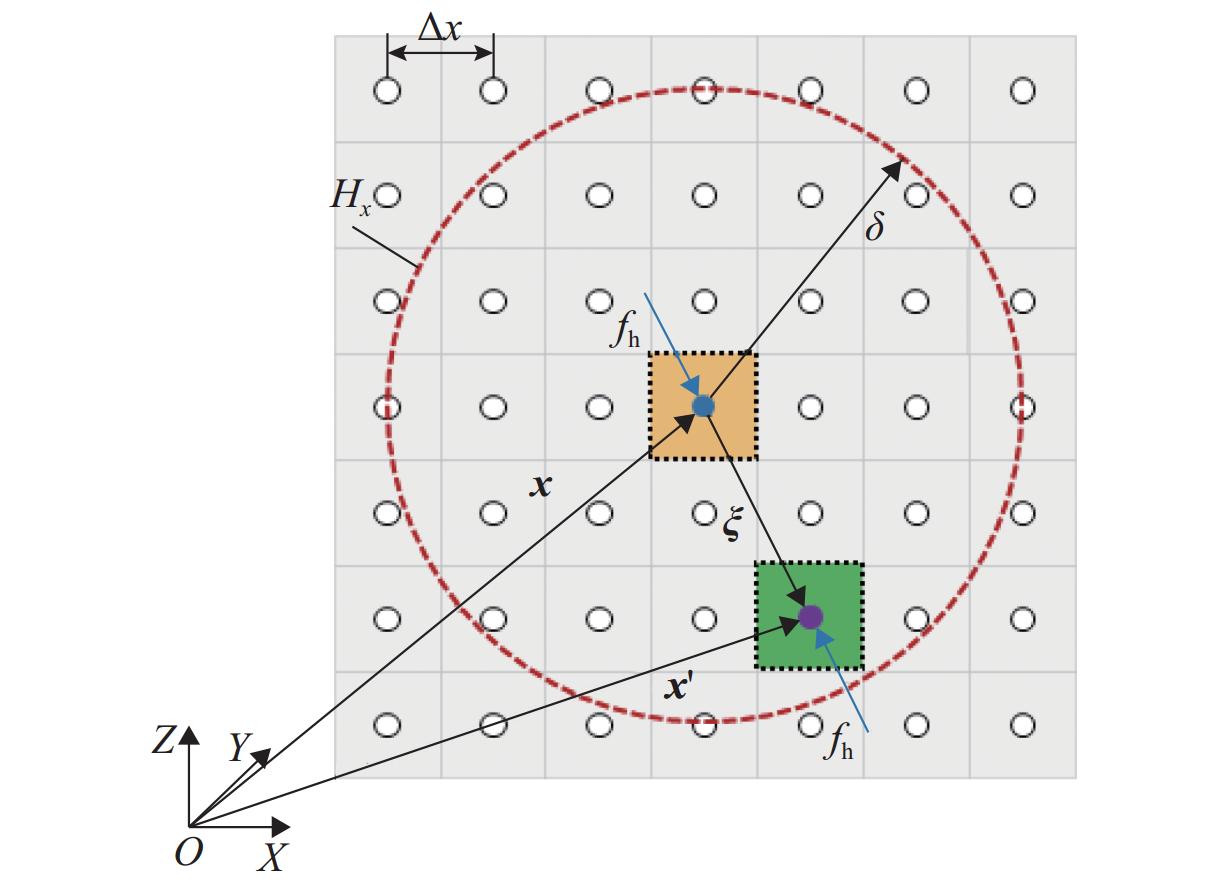

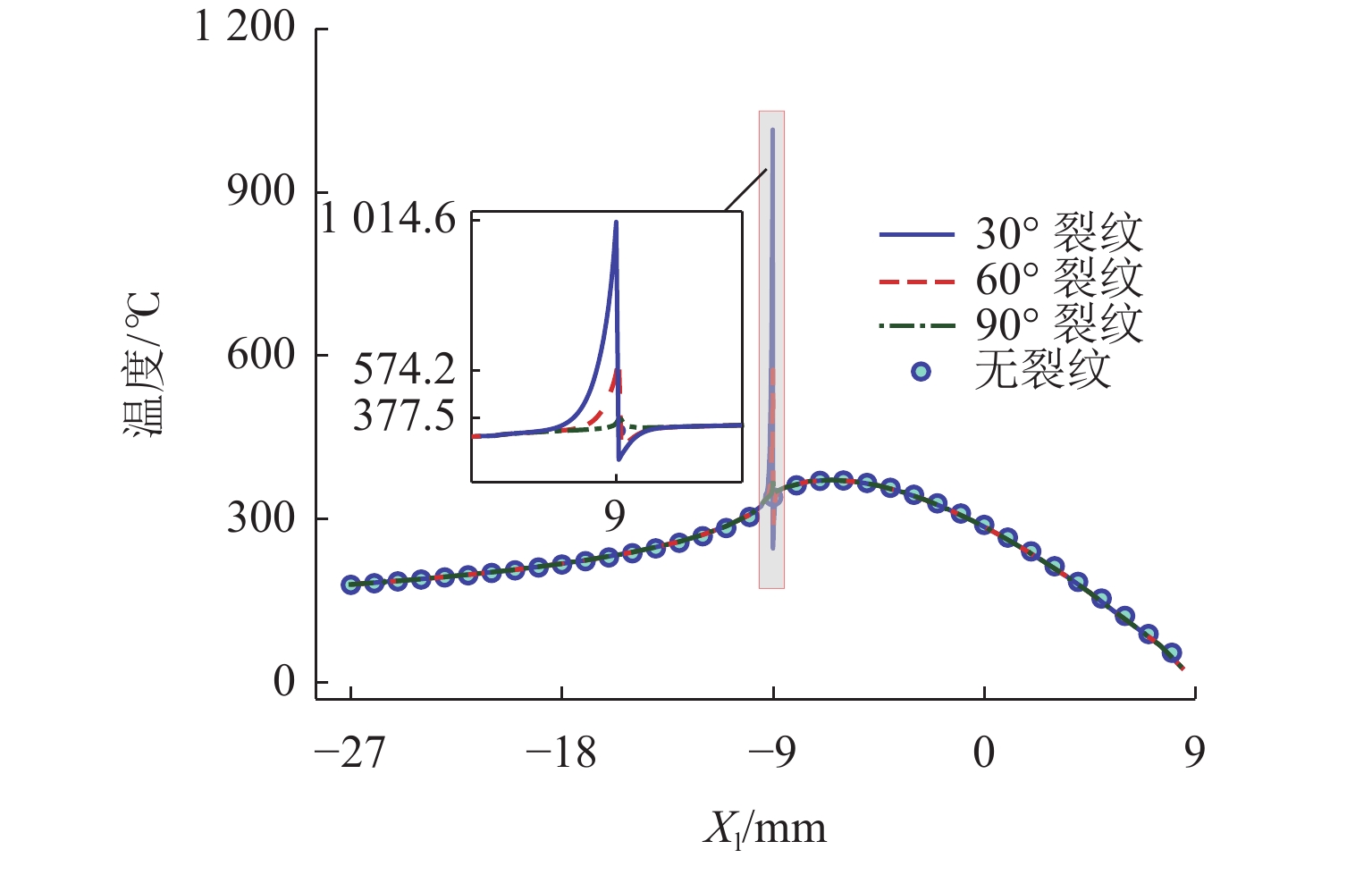

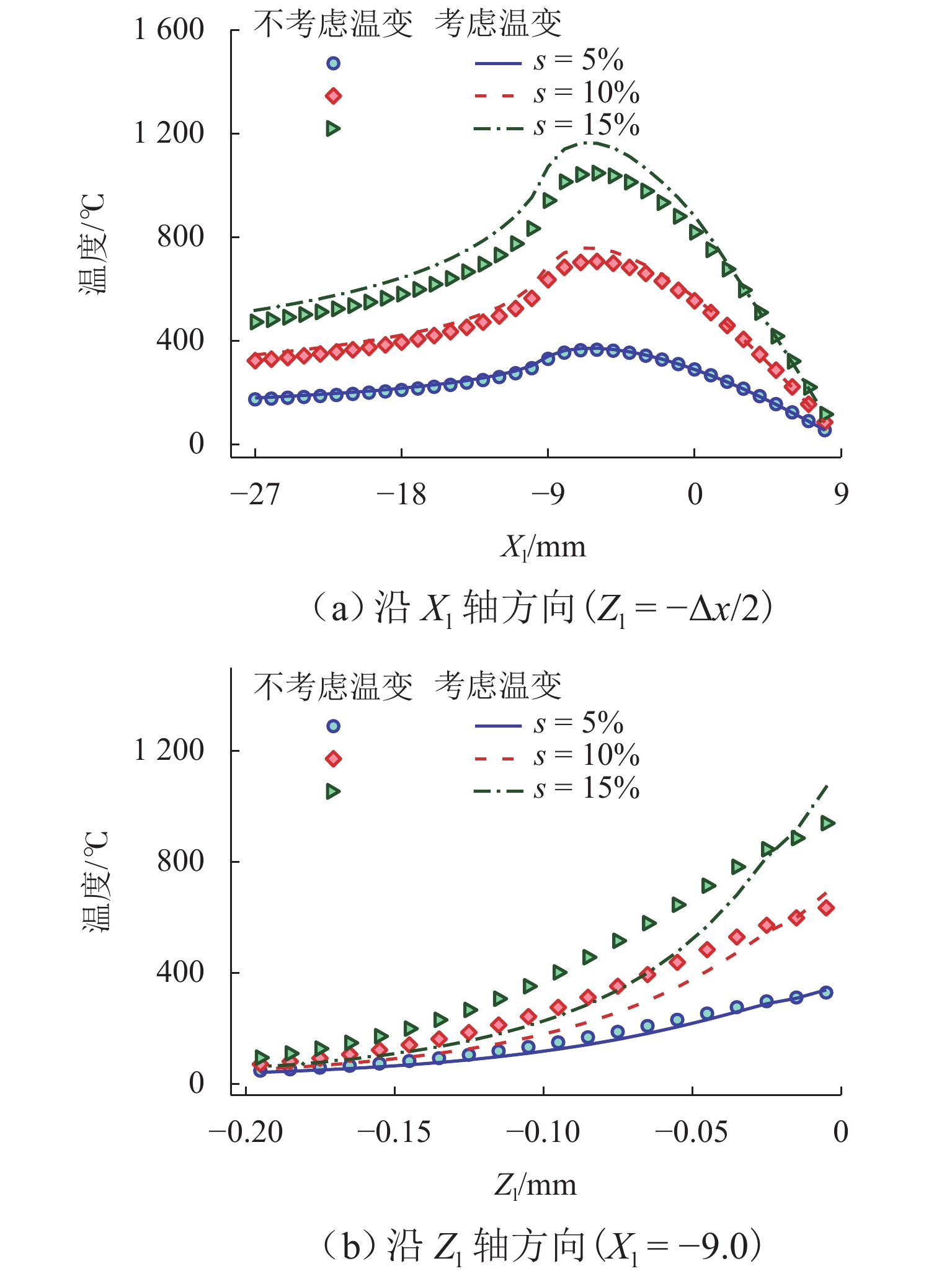

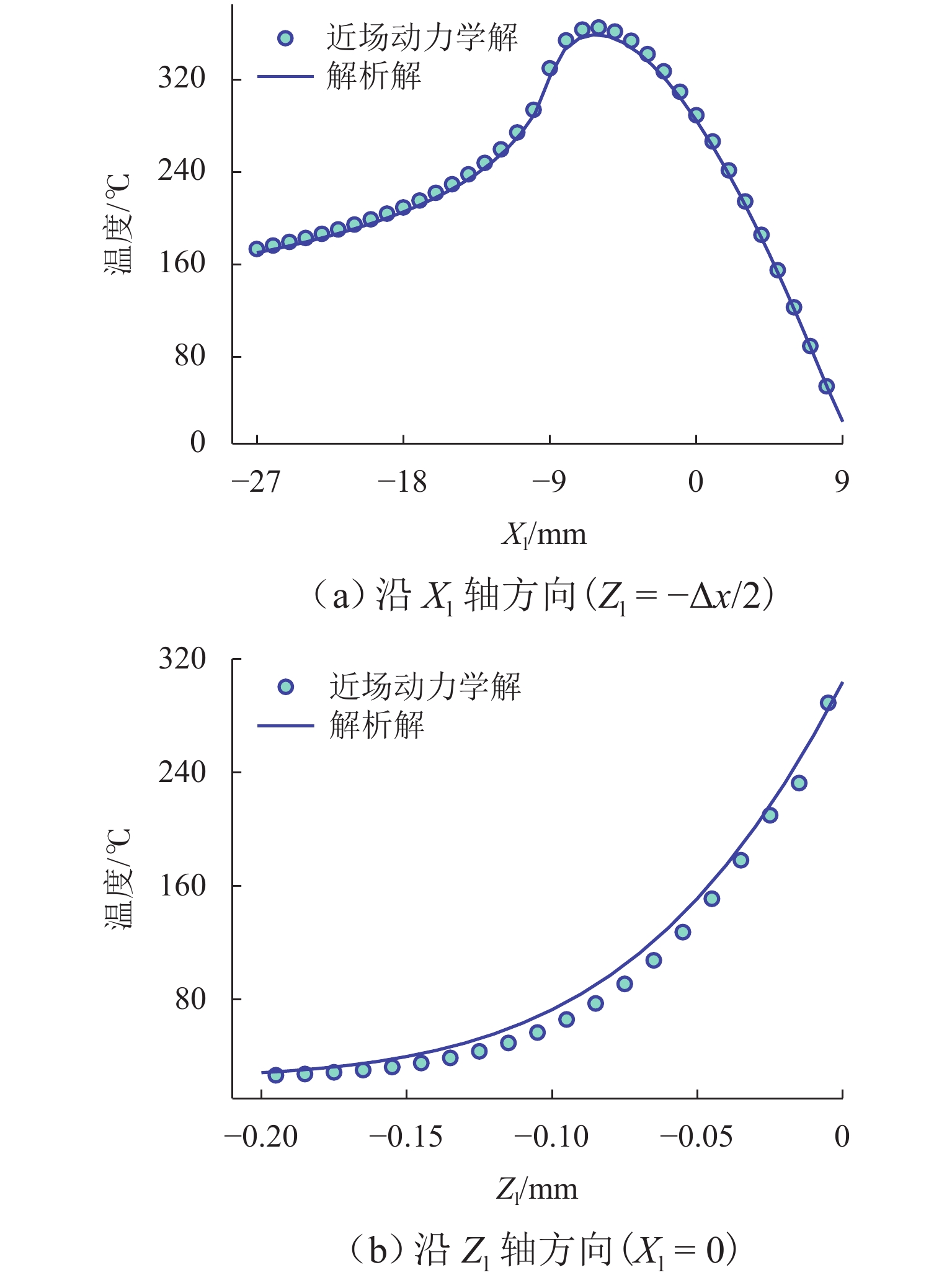

In the calculation of wheel–rail frictional temperature rise, temperature-dependent material properties and surface cracks induce material discontinuities and geometric discontinuities, respectively, which are difficult to handle using traditional analytical and finite element methods based on continuum mechanics. Therefore, based on the nonlocal peridynamic heat conduction theory, a two-dimensional analysis model for wheel–rail frictional temperature rise was established by using a moving heat source method to represent the frictional heat generation boundary in the wheel–rail contact region. First, under identical calculation parameters, the results of the established model were compared with those of the classical analytical method; subsequently, the effects of temperature-dependent material properties and adiabatic crack inclination angle on the rail frictional temperature rise were analyzed. The results indicate that the maximum rail surface temperatures obtained by the established model and the classical analytical method are 364.9 ℃ and 358.7 ℃, respectively, with a relative error of only 1.7%, which verifies the rationality and accuracy of the model. Without considering temperature-dependent material properties, the frictional temperature rise increases linearly with creepage; when considering temperature-dependent material properties, heat more easily accumulates near the rail surface, manifesting as increased surface temperature and decreased internal temperature, and this effect is more pronounced at higher creepage. Under the 15% creepage condition, the local internal temperature when considering temperature-dependent material properties is even lower than that under the 10% creepage condition without considering temperature-dependent material properties. Rail surface cracks significantly alter the local heat flow path and induce heat concentration. When the crack inclination angle is 30°, the peak temperature near the crack reaches 1 014.6 ℃, which is about three times the temperature at the same location in the crack-free condition. The research results provide a new numerical method for analyzing wheel–rail frictional temperature rise under complex conditions.
| [1] |
WANG X M, DONG W J, HE Q, et al. Nonlocal thermomechanical coupled analysis of wheel-rail contact using a peridynamic model[J]. Wear, 2023, 528: 204954. doi: 10.1016/j.wear.2023.204954
|
| [2] |
王平, 张洪吉, 孙耀亮, 等. 考虑材料温变特性的三维轮轨接触热分析[J]. 西南交通大学学报, 2024, 59(2): 239-246, 306. doi: 10.3969/j.issn.0258-2724.20220093
WANG Ping, ZHANG Hongji, SUN Yaoliang, et al. Three-dimensional wheel-rail contact thermal analysis considering temperature-dependent material property[J]. Journal of Southwest Jiaotong University, 2024, 59(2): 239-246, 306. doi: 10.3969/j.issn.0258-2724.20220093
|
| [3] |
ERTZ M, KNOTHE K. A comparison of analytical and numerical methods for the calculation of temperatures in wheel/rail contact[J]. Wear, 2002, 253(3/4): 498-508. doi: 10.1016/s0043-1648(02)00120-5
|
| [4] |
杨新文, 顾少杰, 周顺华, 等. 30 t轴重重载铁路轮轨滑动接触引起的钢轨热相变分析[J]. 铁道学报, 2016, 38(7): 84-90. doi: 10.3969/j.issn.1001-8360.2016.07.012
YANG Xinwen, GU Shaojie, ZHOU Shunhua, et al. Analysis of rail thermal phase transformation due to wheel-rail sliding contact for heavy-haul railway with 30 t axle-load[J]. Journal of the China Railway Society, 2016, 38(7): 84-90. doi: 10.3969/j.issn.1001-8360.2016.07.012
|
| [5] |
伏培林, 丁立, 赵吉中, 等. 考虑材料温度相关性的二维轮轨弹塑性滑动接触温升分析[J]. 力学学报, 2020, 52(5): 1245-1254.
FU Peilin, DING Li, ZHAO Jizhong, et al. Frictional temperature analysis of two-dimensional elasto-plastic wheel-rail sliding contact with temperature-dependent material properties[J]. Chinese Journal of Theoretical and Applied Mechanics, 2020, 52(5): 1245-1254.
|
| [6] |
赵鑫, 金学松, 温泽峰, 等. 全滑动状态下轮轨接触热弹性应力[J]. 西南交通大学学报, 2008, 43(1): 51-56. doi: 10.3969/j.issn.0258-2724.2008.01.010
ZHAO Xin, JIN Xuesong, WEN Zefeng, et al. Thermoelastic stresses due to wheel-rail contact in pure sliding state[J]. Journal of Southwest Jiaotong University, 2008, 43(1): 51-56. doi: 10.3969/j.issn.0258-2724.2008.01.010
|
| [7] |
赵鑫, 温泽峰, 金学松. 轮轨滚动摩擦温升分析[J]. 摩擦学学报, 2005, 25(4): 358-363.
ZHAO Xin, WEN Zefeng, JIN Xuesong. Coupling analysis of wheel/rail frictional temperature[J]. Tribology, 2005, 25(4): 358-363.
|
| [8] |
赵鑫, 温泽峰, 金学松. 表面不平顺对轮轨摩擦温度场的影响[J]. 交通运输工程学报, 2005, 5(2): 19-22. doi: 10.3321/j.issn:1671-1637.2005.02.005
ZHAO Xin, WEN Zefeng, JIN Xuesong. Uneven surface effect on temperature distribution of wheel and rail contact[J]. Journal of Traffic and Transportation Engineering, 2005, 5(2): 19-22. doi: 10.3321/j.issn:1671-1637.2005.02.005
|
| [9] |
吴磊, 温泽峰, 金学松. 轮轨摩擦温升有限元分析[J]. 铁道学报, 2008, 30(3): 19-25. doi: 10.3321/j.issn:1001-8360.2008.03.004
WU Lei, WEN Zefeng, JIN Xuesong. Finite element analysis of wheel-rail frictional temperature rise[J]. Journal of the China Railway Society, 2008, 30(3): 19-25. doi: 10.3321/j.issn:1001-8360.2008.03.004
|
| [10] |
WU Y P, WEI Y P, LIU Y, et al. 3-D analysis of thermal-mechanical behavior of wheel/rail sliding contact considering temperature characteristics of materials[J]. Applied Thermal Engineering, 2017, 115: 455-462. doi: 10.1016/j.applthermaleng.2016.12.136
|
| [11] |
NAEIMI M, LI S G, LI Z L, et al. Thermomechanical analysis of the wheel-rail contact using a coupled modelling procedure[J]. Tribology International, 2018, 117: 250-260. doi: 10.1016/j.triboint.2017.09.010
|
| [12] |
LIAN Q L, DENG G Y, TIEU A K, et al. Thermo-mechanical coupled finite element analysis of rolling contact fatigue and wear properties of a rail steel under different slip ratios[J]. Tribology International, 2020, 141: 105943. doi: 10.1016/j.triboint.2019.105943
|
| [13] |
SILLING S A. Reformulation of elasticity theory for discontinuities and long-range forces[J]. Journal of the Mechanics and Physics of Solids, 2000, 48(1): 175-209. doi: 10.1016/S0022-5096(99)00029-0
|
| [14] |
SILLING S A, EPTON M, WECKNER O, et al. Peridynamic states and constitutive modeling[J]. Journal of Elasticity, 2007, 88(2): 151-184. doi: 10.1007/s10659-007-9125-1
|
| [15] |
BOBARU F, DUANGPANYA M. The peridynamic formulation for transient heat conduction[J]. International Journal of Heat and Mass Transfer, 2010, 53(19/20): 4047-4059. doi: 10.1016/j.ijheatmasstransfer.2010.05.024
|
| [16] |
OTERKUS S, MADENCI E, AGWAI A. Peridynamic thermal diffusion[J]. Journal of Computational Physics, 2014, 265: 71-96. doi: 10.1016/j.jcp.2014.01.027
|
| [17] |
KILIC B, MADENCI E. Peridynamic theory for thermomechanical analysis[J]. IEEE Transactions on Advanced Packaging, 2010, 33(1): 97-105. doi: 10.1109/TADVP.2009.2029079
|
| [18] |
OTERKUS S, MADENCI E, AGWAI A. Fully coupled peridynamic thermomechanics[J]. Journal of the Mechanics and Physics of Solids, 2014, 64: 1-23.
|
| [19] |
LI Z Y, HUANG D, XU Y P, et al. Nonlocal steady-state thermoelastic analysis of functionally graded materials by using peridynamic differential operator[J]. Applied Mathematical Modelling, 2021, 93: 294-313. doi: 10.1016/j.apm.2020.12.004
|
| [20] |
WANG X M, LI S R, DONG W J, et al. Peridynamic study on thermomechanical damage of the rail during wheel idling[J]. Engineering Failure Analysis, 2024, 165: 108791. doi: 10.1016/j.engfailanal.2024.108791
|
| [21] |
WANG X M, MA Y S, DONG W J, et al. Investigation of plastic deformation and damage at the wheel–rail interface under thermal contact conditions via peridynamics[J]. Results in Engineering, 2026, 29: 109375. doi: 10.1016/j.rineng.2026.109375
|
| [22] |
SILLING S A, ASKARI E. A meshfree method based on the peridynamic model of solid mechanics[J]. Computers & Structures, 2005, 83(17/18): 1526-1535. doi: 10.1016/j.compstruc.2004.11.026
|
| [23] |
CARTER F W. On the action of a locomotive driving wheel[J]. Proceedings of the Royal Society of London Series A, Containing Papers of a Mathematical and Physical Character, 1926, 112(760): 151-157.
|
| [24] |
WANG X M, WANG Q H, AN B Y, et al. A GPU parallel scheme for accelerating 2D and 3D peridynamics models[J]. Theoretical and Applied Fracture Mechanics, 2022, 121: 103458. doi: 10.1016/j.tafmec.2022.103458
|
| [25] |
WANG X M, LI S R, DONG W J, et al. Multi-GPU parallel acceleration scheme for meshfree peridynamic simulations[J]. Theoretical and Applied Fracture Mechanics, 2024, 131: 104401. doi: 10.1016/j.tafmec.2024.104401
|
