| Citation: | WANG Kaiyun, CHEN Qinghua, CHEN Shiqian. Damage Mechanism of Heavy-Haul Locomotive Wheels on Long Heavy Downhill Slopes with Low Adhesion[J]. Journal of Southwest Jiaotong University, 2026, 61(3): 995-1008. doi: 10.3969/j.issn.0258-2724.20260102
|

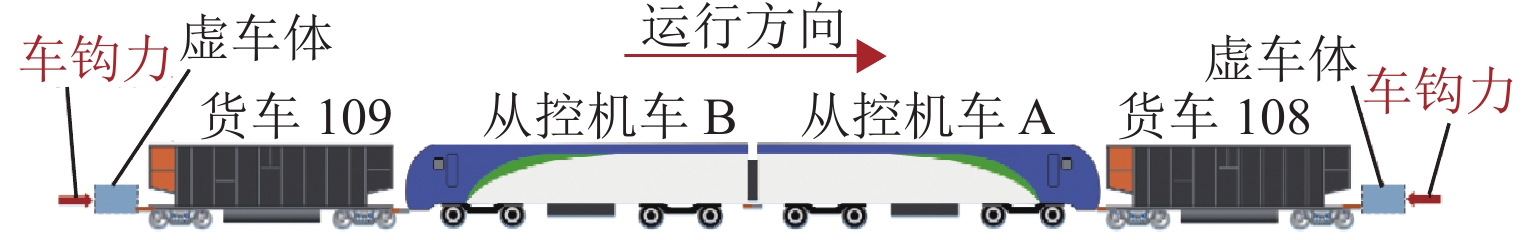

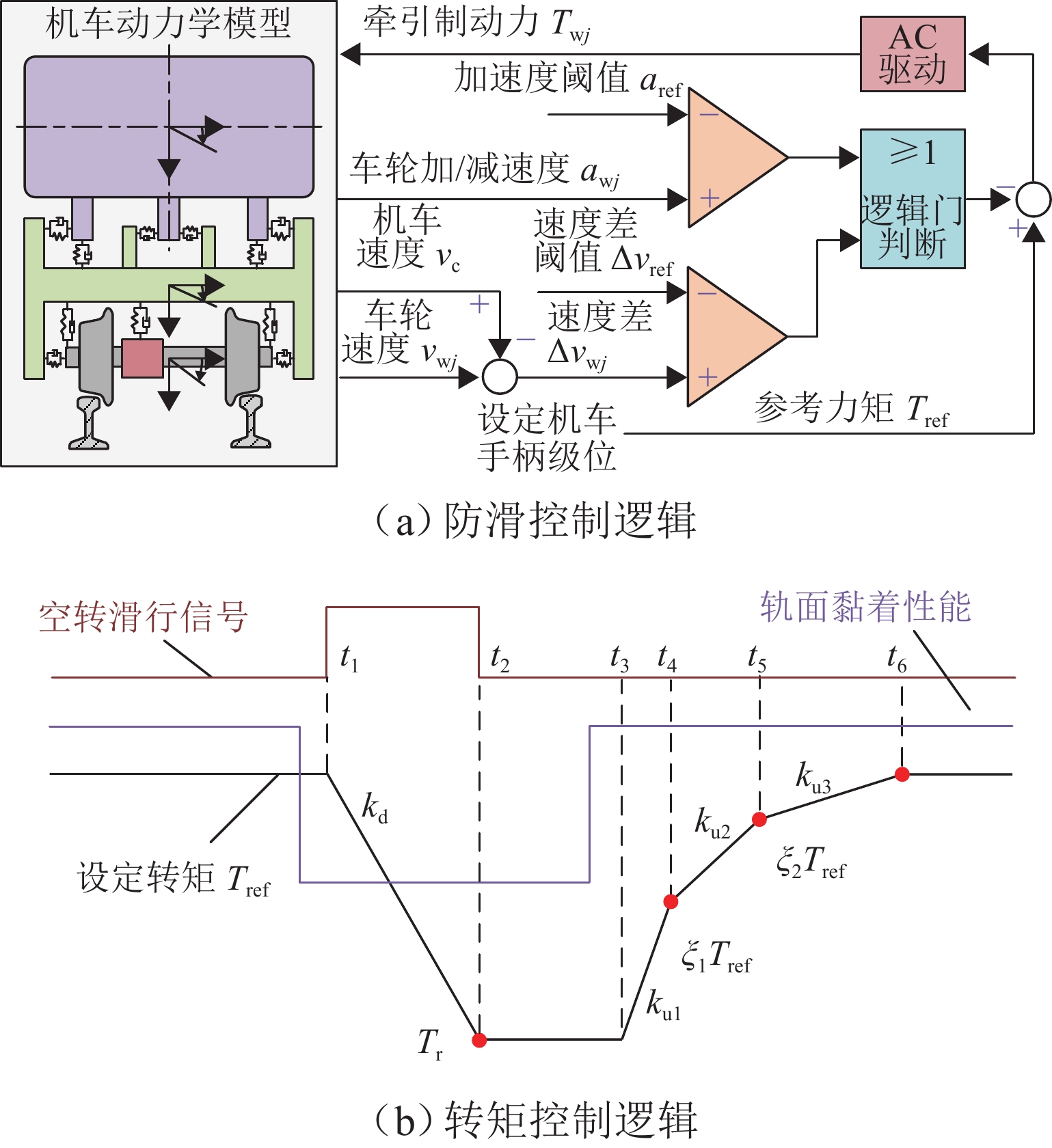

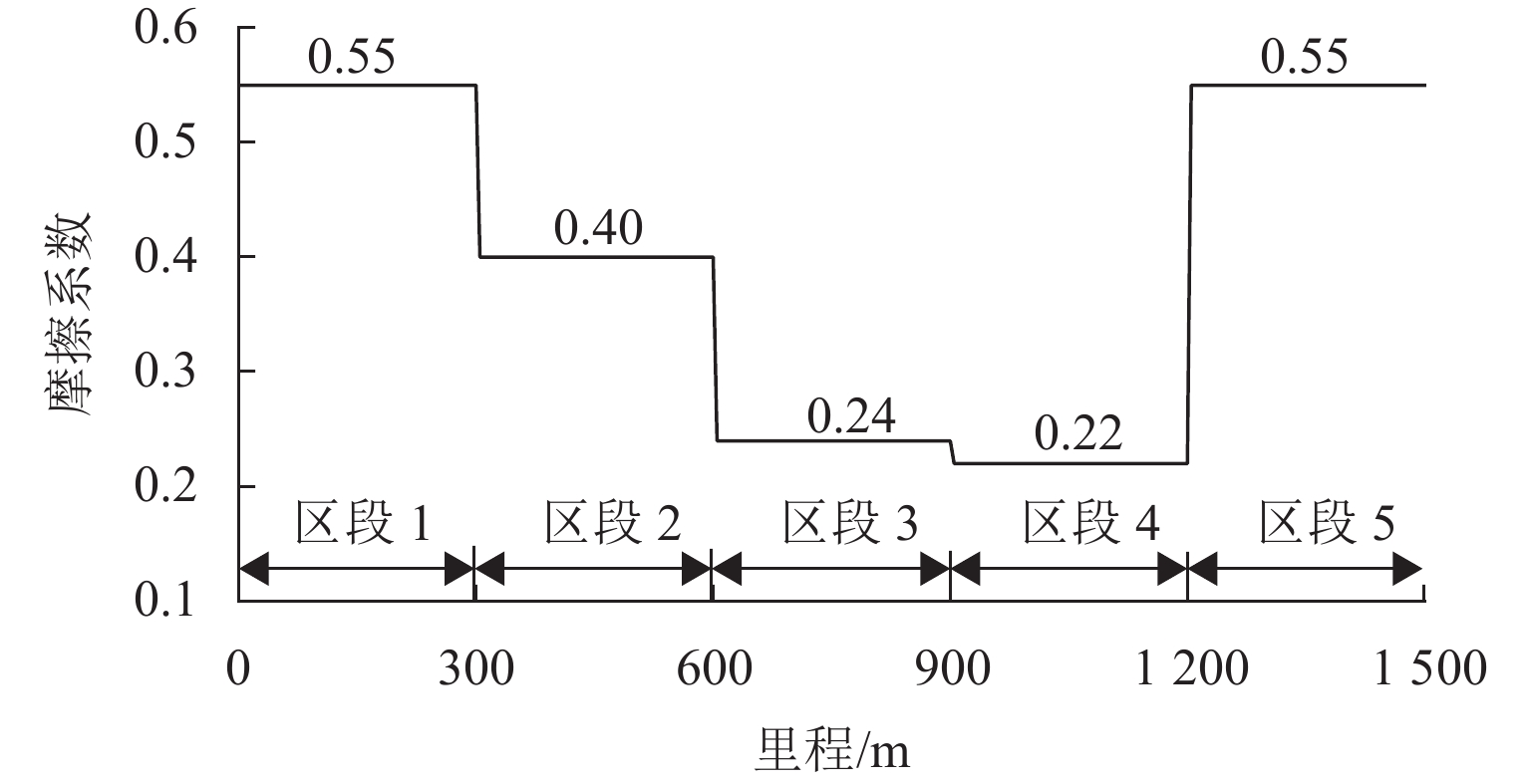

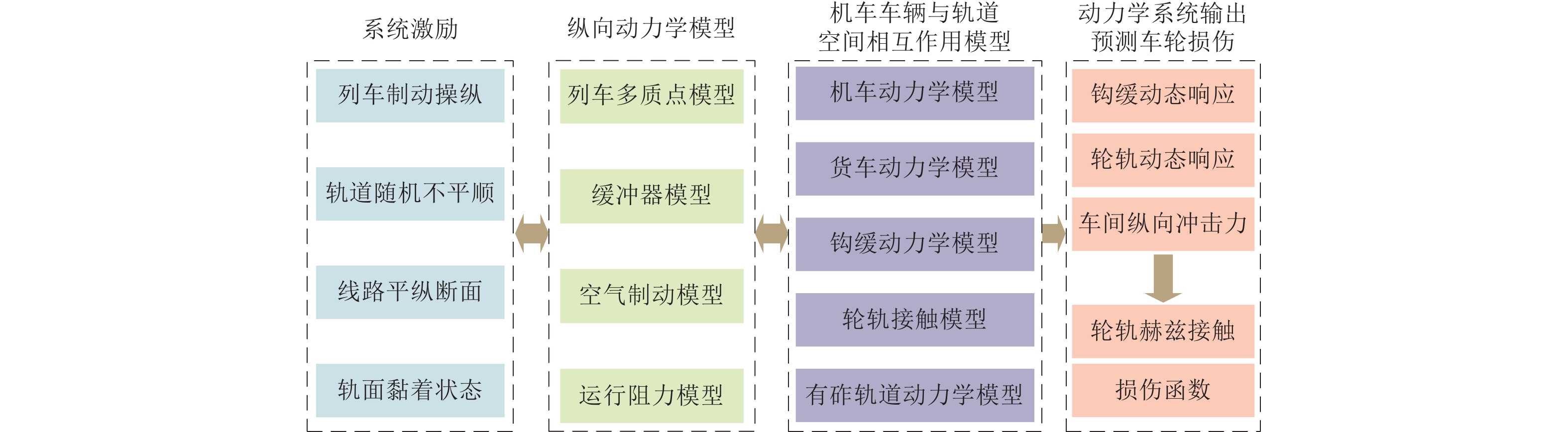

To investigate the damage mechanism of locomotive wheels during the braking of heavy-haul trains on long heavy downhill slopes with low adhesion, a wheel damage analysis model for heavy-haul locomotives considering longitudinal impulses was established focusing on the slave control locomotive of a 20,000-ton heavy-haul combined train. This model mainly included a longitudinal dynamics model of the 20,000-ton heavy-haul combined train, a vehicle-track spatial interaction model considering anti-slip control, and a wheel damage prediction model. Based on this model, the wheel damage distribution of the slave control locomotive under electric braking conditions was analyzed, and the effects of rail surface adhesion parameters and anti-slip control algorithm parameters on the wheel damage of the slave control locomotive were further explored. Simulation results indicate that: 1) Coupler forces lead to different wheel adhesion performance and sliding characteristics between Section A and Section B of the slave control locomotive when passing through low-adhesion areas, which in turn results in differences in the damage values among individual wheels of the slave control locomotive. Under normal rail adhesion conditions, the wheel damage is predominantly fatigue damage; with characteristic parameter matchings of different contact patches, the wheel damage gradually transforms from fatigue damage to wear damage. 2) Different anti-slip control thresholds exhibit varying effects on wheel damage under complex rail adhesion and braking conditions. When the electric braking force reduction ratio increases from 0.4 to 1.0, the maximum wheel damage value of each wheelset decreases by 88.9%. When the braking force reduction slope increases from 5 kN/s to 30 kN/s, the maximum decrease in the wheel damage value of each wheelset reaches 92.4%, and when the recovery slope decreases from 15 kN/s to 1 kN/s, the maximum decrease is 80.0%.
| [1] |
申长宏, 陈清明, 蒲全卫, 等. HXD1型机车车轮踏面剥离问题研究[J]. 铁道机车车辆, 2019, 39(3): 78-82, 87. doi: 10.3969/j.issn.1008-7842.2019.03.18
SHEN Changhong, CHEN Qingming, PU Quanwei, et al. Study on tread spalling issues about HXD1 locomotive[J]. Railway Locomotive & Car, 2019, 39(3): 78-82, 87. doi: 10.3969/j.issn.1008-7842.2019.03.18
|
| [2] |
沙永龙. HXD2C型机车轮对踏面剥离原因分析及对策[J]. 铁道机车与动车, 2019(6): 46-48, 5-6.
SHA Yonglong. Cause analysis and countermeasure of wheel tread stripping in HXD2C locomotive[J]. Railway Locomotive and Motor Car, 2019(6): 46-48, 5-6.
|
| [3] |
杨逸凡, 凌亮, 杨云帆, 等. 重载机车车轮擦伤下的轮轨动态响应[J]. 工程力学, 2020, 37(12): 213-219. doi: 10.6052/j.issn.1000-4750.2020.01.0033
YANG Yifan, LING Liang, YANG Yunfan, et al. Wheel/rail dynamic responses due to the wheel flat of heavy-haul locomotives[J]. Engineering Mechanics, 2020, 37(12): 213-219. doi: 10.6052/j.issn.1000-4750.2020.01.0033
|
| [4] |
DIRKS B, ENBLOM R. Prediction model for wheel profile wear and rolling contact fatigue[J]. Wear, 2011, 271(1/2): 210-217. doi: 10.1016/j.wear.2010.10.028
|
| [5] |
LYU K K, WANG K Y, LING L, et al. Influence of wheel diameter difference on surface damage for heavy-haul locomotive wheels: Measurements and simulations[J]. International Journal of Fatigue, 2020, 132: 105343. doi: 10.1016/j.ijfatigue.2019.105343
|
| [6] |
LYU K K, WANG K Y, LIU P F, et al. Analysis on the features and potential causes of wheel surface damage for heavy-haul locomotives[J]. Engineering Failure Analysis, 2020, 109: 104292. doi: 10.1016/j.engfailanal.2019.104292
|
| [7] |
LIU Y F, JIANG T, ZHAO X, et al. On the wheel rolling contact fatigue of high power AC locomotives running in complicated environments[J]. Wear, 2019, 436: 202956. doi: 10.1016/j.wear.2019.202956
|
| [8] |
WU Q, BERNAL E, SPIRYAGIN M, et al. Heavy haul rail/wheel wear and RCF assessments using 3D train models and a new wear map[J]. Wear, 2024, 538/539: 205226.
|
| [9] |
肖乾, 石小牒, 陈道云, 等. 基于损伤函数及典型线路工况组合的动车组车轮损伤预测方法[J]. 机械工程学报, 2025, 61(10): 376-385.
XIAO Qian, SHI Xiaodie, CHEN Daoyun, et al. Method for predicting wheel damage in high-speed trains based on damage functions and combinations of typical line operating conditions[J]. Journal of Mechanical Engineering, 2025, 61(10): 376-385.
|
| [10] |
周素霞, 李光, 孙宇铎, 等. 重载机车不同轴序轮径差造成的踏面损伤规律[J]. 科学技术与工程, 2025, 25(2): 780-787.
ZHOU Suxia, LI Guang, SUN Yuduo, et al. Tread damage law caused by different coaxial sequence wheel diameter difference in heavy-haul locomotive[J]. Science Technology and Engineering, 2025, 25(2): 780-787.
|
| [11] |
曾东方, 鲁连涛, 张远彬, 等. 高速轮轨材料匹配的滚动接触磨损性能[J]. 机械工程学报, 2013, 49(13): 183-189.
ZENG Dongfang, LU Liantao, ZHANG Yuanbin, et al. Rolling contact wear properties of matching of high-speed wheel/rail materials[J]. Journal of Mechanical Engineering, 2013, 49(13): 183-189.
|
| [12] |
SHI Z Y, NENCIONI L, MELI E, et al. Effect of material hardness ratio on wear and rolling contact fatigue: Development and validation of new laws[J]. Wear, 2023, 514: 204561.
|
| [13] |
安志胜, 王晋斌. HXD2型机车轮缘润滑系统及其控制策略研究[J]. 电力机车与城轨车辆, 2023, 46(3): 47-49.
AN Zhisheng, WANG Jinbin. Wheel flange lubrication system and its control stategy of HXD2 locomotive[J]. Electric Locomotives & Mass Transit Vehicles, 2023, 46(3): 47-49.
|
| [14] |
吕凯凯. 大功率电力机车车轮踏面剥离产生机制的理论与试验研究[D]. 成都: 西南交通大学, 2020.
|
| [15] |
何成刚, 王欣纪, 俞茹昕, 等. 湿热环境下车轮材料局部激光熔覆不锈钢粉末涂层磨损与损伤行为[J]. 中国表面工程, 2025, 38(3): 372-383.
HE Chenggang, WANG Xinji, YU Ruxin, et al. Wear and damage behaviors of locally laser-cladded wheel materials in a humid hot environment using stainless steel powder[J]. China Surface Engineering, 2025, 38(3): 372-383.
|
| [16] |
刘鹏. 重载机车电制动力对踏面剥离的影响研究[J]. 铁道机车车辆, 2019, 39(5): 73-76. doi: 10.3969/j.issn.1008-7842.2019.05.14
LIU Peng. Research on influence of electric braking force on tread stripping of heavy haul locomotive[J]. Railway Locomotive & Car, 2019, 39(5): 73-76. doi: 10.3969/j.issn.1008-7842.2019.05.14
|
| [17] |
LIU Y F, JIANG T, ZHAO X, et al. Effects of axle load transfer on wheel rolling contact fatigue of high-power AC locomotives with oblique traction rods[J]. International Journal of Fatigue, 2020, 139: 105748. doi: 10.1016/j.ijfatigue.2020.105748
|
| [18] |
郭欣茹, 杨云帆, 凌亮, 等. 防滑控制策略对机车车轮的损伤影响研究[J]. 机械工程学报, 2023, 59(22): 369-379. doi: 10.3901/JME.2023.22.369
GUO Xinru, YANG Yunfan, LING Liang, et al. Effect of anti-slip control strategy on locomotive wheel tread damage[J]. Journal of Mechanical Engineering, 2023, 59(22): 369-379. doi: 10.3901/JME.2023.22.369
|
| [19] |
何静, 刘建华, 张昌凡. 重载机车轮轨黏着利用技术研究综述[J]. 铁道学报, 2018, 40(9): 30-39. doi: 10.3969/j.issn.1001-8360.2018.09.005
HE Jing, LIU Jianhua, ZHANG Changfan. An overview on wheel-rail adhesion utilization of heavy-haul locomotive[J]. Journal of the China Railway Society, 2018, 40(9): 30-39. doi: 10.3969/j.issn.1001-8360.2018.09.005
|
| [20] |
林文立, 刘志刚, 方攸同. 地铁列车牵引传动再粘着优化控制策略[J]. 西南交通大学学报, 2012, 47(3): 465-470. doi: 10.3969/j.issn.0258-2724.2012.03.018
LIN Wenli, LIU Zhigang, FANG Youtong. Re-adhesion optimization control strategy for metro traction[J]. Journal of Southwest Jiaotong University, 2012, 47(3): 465-470. doi: 10.3969/j.issn.0258-2724.2012.03.018
|
| [21] |
KADOWAKI S, OHISHI K, MIYASHITA I, et al. Anti-slip/skid re-adhesion control of electric motor coach based on disturbance observer and sensor-less vector control[J]. EPE Journal, 2006, 16(2): 7-15. doi: 10.1080/09398368.2006.11463614
|
| [22] |
李宁洲, 冯晓云, 卫晓娟. 采用动态多子群GSA-RBF神经网络的机车黏着优化控制[J]. 铁道学报, 2014, 36(12): 27-34. doi: 10.3969/j.issn.1001-8360.2014.12.005
LI Ningzhou, FENG Xiaoyun, WEI Xiaojuan. Optimized locomotive adhesion control based on dynamic multiple sub-group GSA-RBF neural network[J]. Journal of the China Railway Society, 2014, 36(12): 27-34. doi: 10.3969/j.issn.1001-8360.2014.12.005
|
| [23] |
王波, 罗世辉, 王晨, 等. 青藏线双源动车组黏着适应性研究[J]. 西南交通大学学报, 2025, 60(1): 214-224. doi: 10.3969/j.issn.0258-2724.20220843
WANG Bo, LUO Shihui, WANG Chen, et al. Adhesion adaptability of dual-source-powered electric multiple unit on Qinghai—Xizang line[J]. Journal of Southwest Jiaotong University, 2025, 60(1): 214-224. doi: 10.3969/j.issn.0258-2724.20220843
|
| [24] |
马群, 易兴利, 姚远, 等. 大功率永磁直驱架悬式机车的重建黏着性能分析[J]. 西南交通大学学报, 2025, 60(4): 921-929. doi: 10.3969/j.issn.0258-2724.20240652
MA Qun, YI Xingli, YAO Yuan, et al. Re-adhesion performance of high-power permanent-magnet direct-drive bogie-suspended locomotives[J]. Journal of Southwest Jiaotong University, 2025, 60(4): 921-929. doi: 10.3969/j.issn.0258-2724.20240652
|
| [25] |
TIAN Y, LIU S, DANIEL W J T, et al. Investigation of the impact of locomotive creep control on wear under changing contact conditions[J]. Vehicle System Dynamics, 2015, 53(5): 692-709. doi: 10.1080/00423114.2015.1020815
|
| [26] |
张昌凡, 豆兵兵, 何静, 等. 基于轴重转移下的机车防空转仿真研究[J]. 机车电传动, 2017(2): 34-38. doi: 10.13890/j.issn.1000-128x.2017.02.008
ZHANG Changfan, DOU Bingbing, HE Jing, et al. Study on locomotive anti-slip simulation based on axle load transfer[J]. Electric Drive for Locomotives, 2017(2): 34-38. doi: 10.13890/j.issn.1000-128x.2017.02.008
|
| [27] |
冯俞钧, 黄景春, 王会议, 等. 重载机车动态轴重转移补偿仿真研究[J]. 计算机仿真, 2018, 35(8): 115-118. doi: 10.3969/j.issn.1006-9348.2018.08.024
FENG Yujun, HUANG Jingchun, WANG Huiyi, et al. Simulation researchon heavy load locomotive dynamic axle loadtransfer compensation[J]. Computer Simulation, 2018, 35(8): 115-118. doi: 10.3969/j.issn.1006-9348.2018.08.024
|
| [28] |
CHEN Q H, GE X, CHEN S Q, et al. A nonlinear optimisation considering axle load transfer for enhancing adhesion utilisation of a locomotive with an oblique traction rod[J]. Vehicle System Dynamics, 2026, 64(2): 326-349. doi: 10.1080/00423114.2024.2432388
|
| [29] |
李中奇, 余剑烽, 周靓. 重载列车运行过程的滑模自抗扰控制方法[J]. 西南交通大学学报, 2026, 61(1): 197-206, 242.
LI Zhongqi, YU Jianfeng, ZHOU Liang. Sliding mode active disturbance rejection control method for heavy-haul trains during operation[J]. Journal of Southwest Jiaotong University, 2026, 61(1): 197-206, 242.
|
| [30] |
LIU P F, ZHAI W M, WANG K Y. Establishment and verification of three-dimensional dynamic model for heavy-haul train–track coupled system[J]. Vehicle System Dynamics, 2016, 54(11): 1511-1537. doi: 10.1080/00423114.2016.1213862
|
| [31] |
WU G S, SHEN L J, YAO Y, et al. Determination of the dynamic characteristics of locomotive drive systems under re-adhesion conditions using wheel slip controller[J]. Journal of Zhejiang University-Science A, 2023, 24(8): 722-734. doi: 10.1631/jzus.A2300158
|
| [32] |
BURSTOW M C. Whole life rail model application and development for RSSB–continued development of an RCF damage parameter[R]. London: Rail Safety and Standards Board, 2004.
|
| [33] |
王玉光, 卢纯, 赵鑫, 等. 高速动车组车轮滚动接触疲劳观测与模拟研究[J]. 机械工程学报, 2018, 54(4): 150-157. doi: 10.3901/JME.2018.04.150
WANG Yuguang, LU Chun, ZHAO Xin, et al. Rolling contact fatigue of Chinese high speed wheels: observations and simulations[J]. Journal of Mechanical Engineering, 2018, 54(4): 150-157. doi: 10.3901/JME.2018.04.150
|
| [34] |
POLACH O. Creep forces in simulations of traction vehicles running on adhesion limit[J]. Wear, 2005, 258(7/8): 992-1000. doi: 10.1016/j.wear.2004.03.046
|
| [35] |
罗仁, 石怀龙. 铁道车辆系统动力学及应用[M]. 成都: 西南交通大学出版社, 2018.
|
| [36] |
TUNNA J, SINCLAIR J, PEREZ J. The development of a wheel wear and rolling contact fatigue model[R]. London: Rail Safety and Standards Board, 2007.
|
| [37] |
YANG Y F, LING L, WANG J C, et al. A numerical study on tread wear and fatigue damage of railway wheels subjected to anti-slip control[J]. Friction, 2023, 11(8): 1470-1492. doi: 10.1007/s40544-022-0684-8
|
