| Citation: | LI Yongle, YAN Tingyuan, ZHANG Mingjin, Ti Zilong, Yu Chuanjin, Wang Bin. Classification of Bridge Site Characteristics and Wind Field Characteristics of Large-Span Mountainous Bridges[J]. Journal of Southwest Jiaotong University, 2026, 61(3): 1031-1043. doi: 10.3969/j.issn.0258-2724.20260078
|

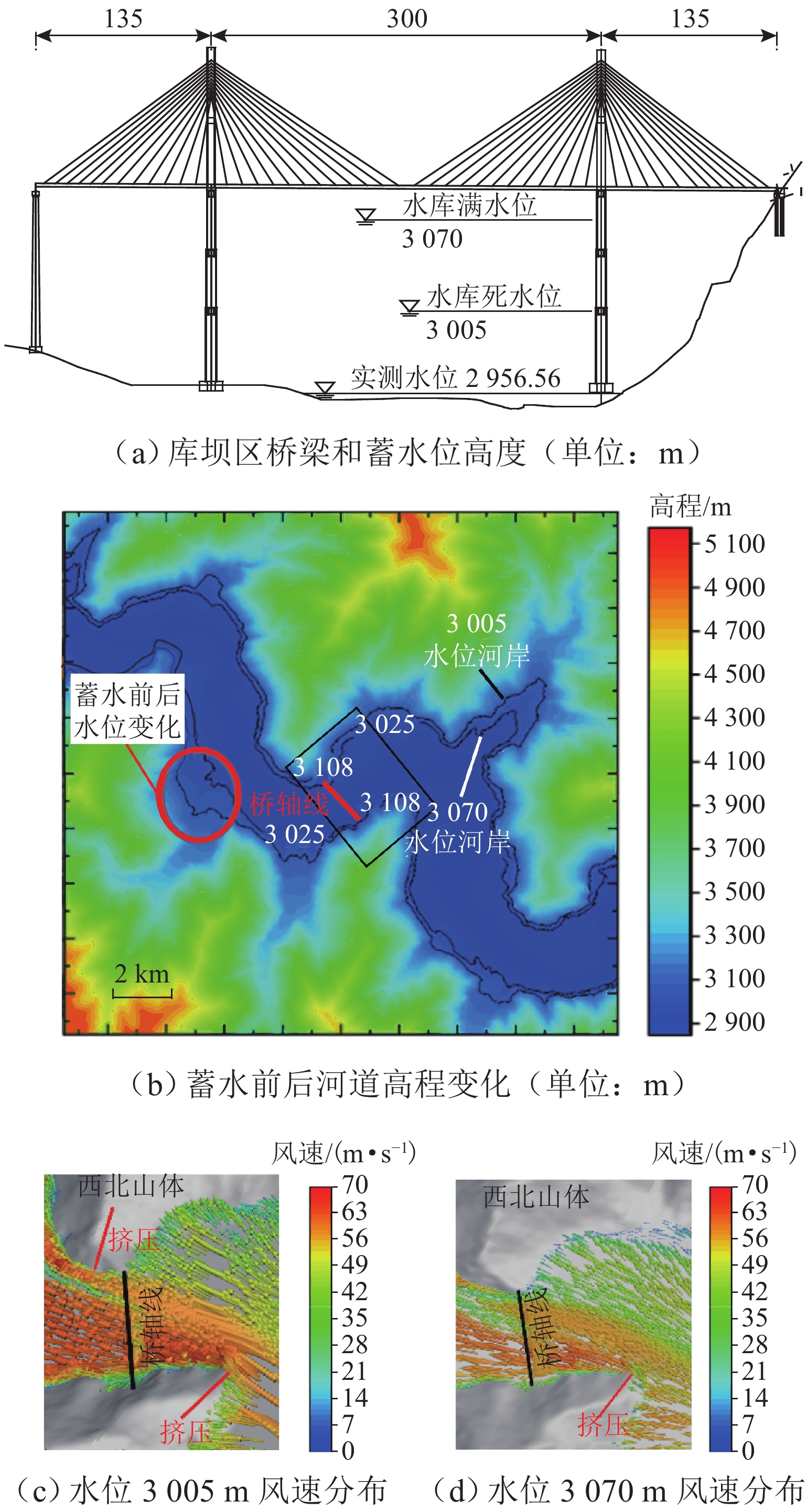

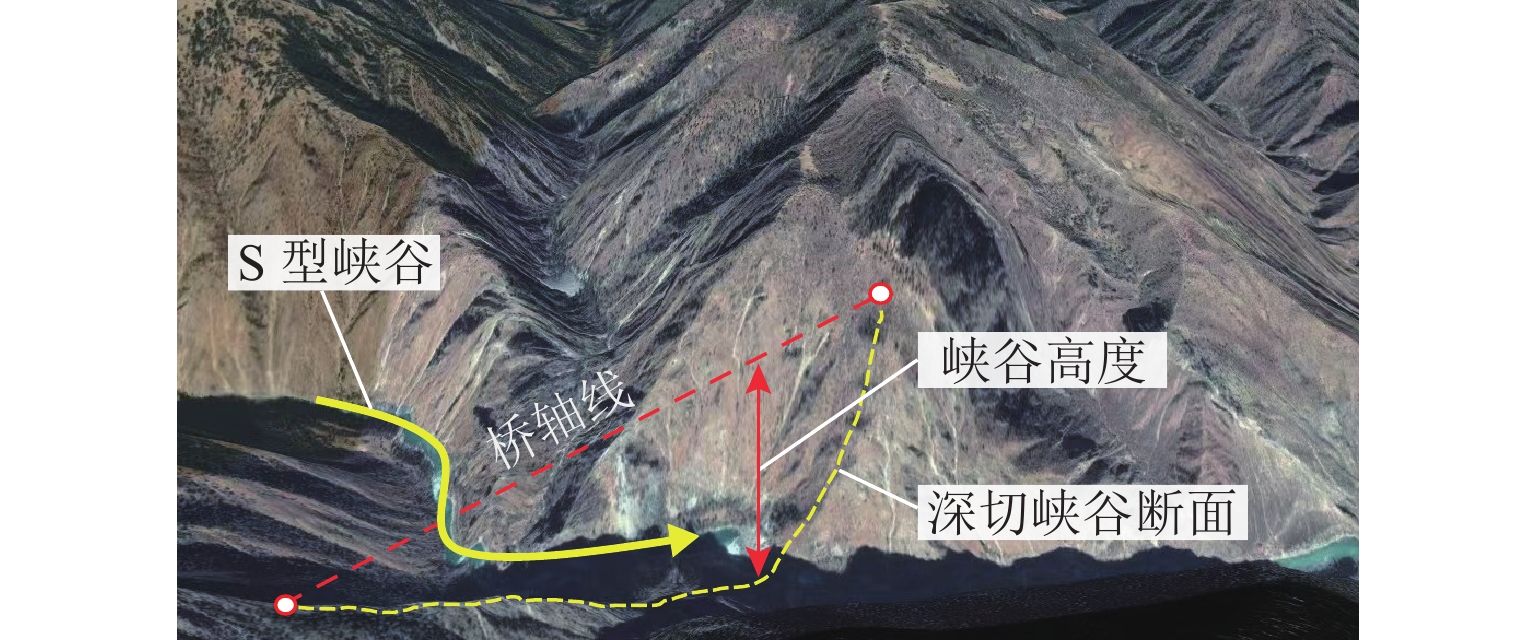

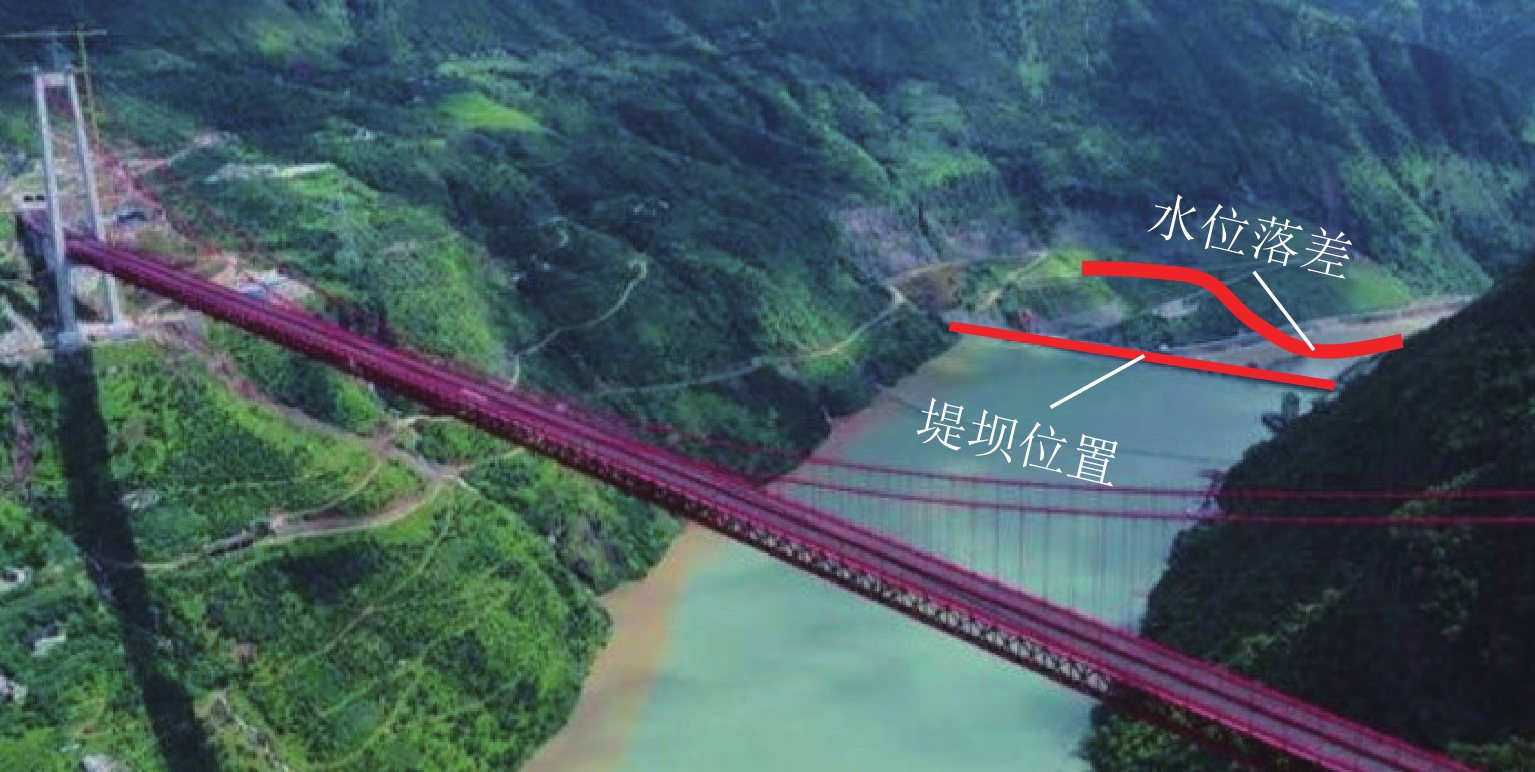

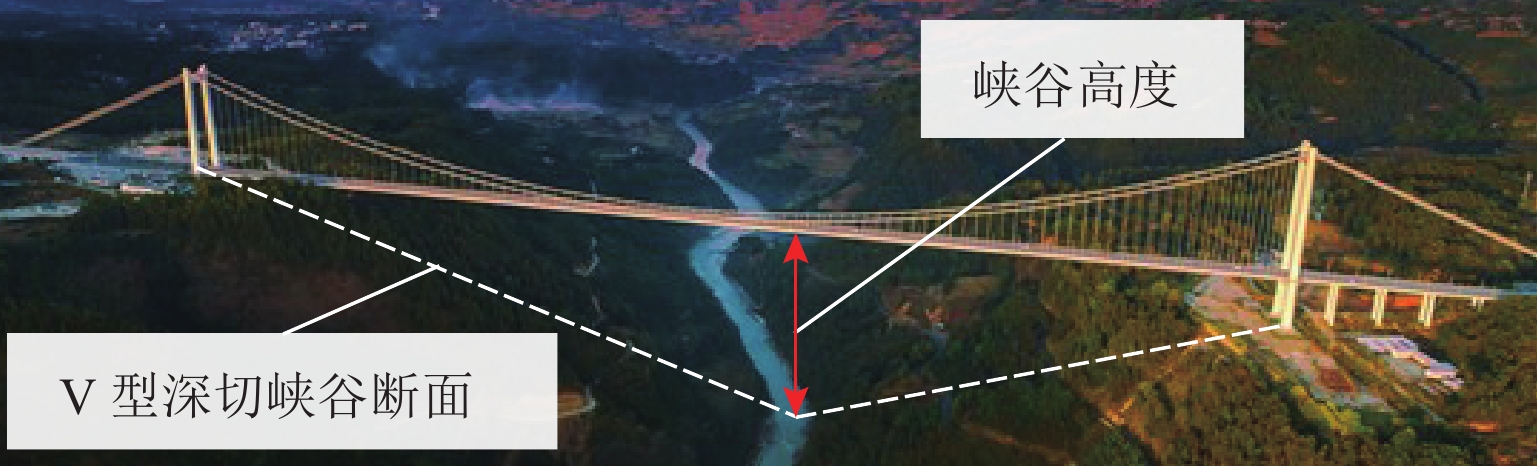

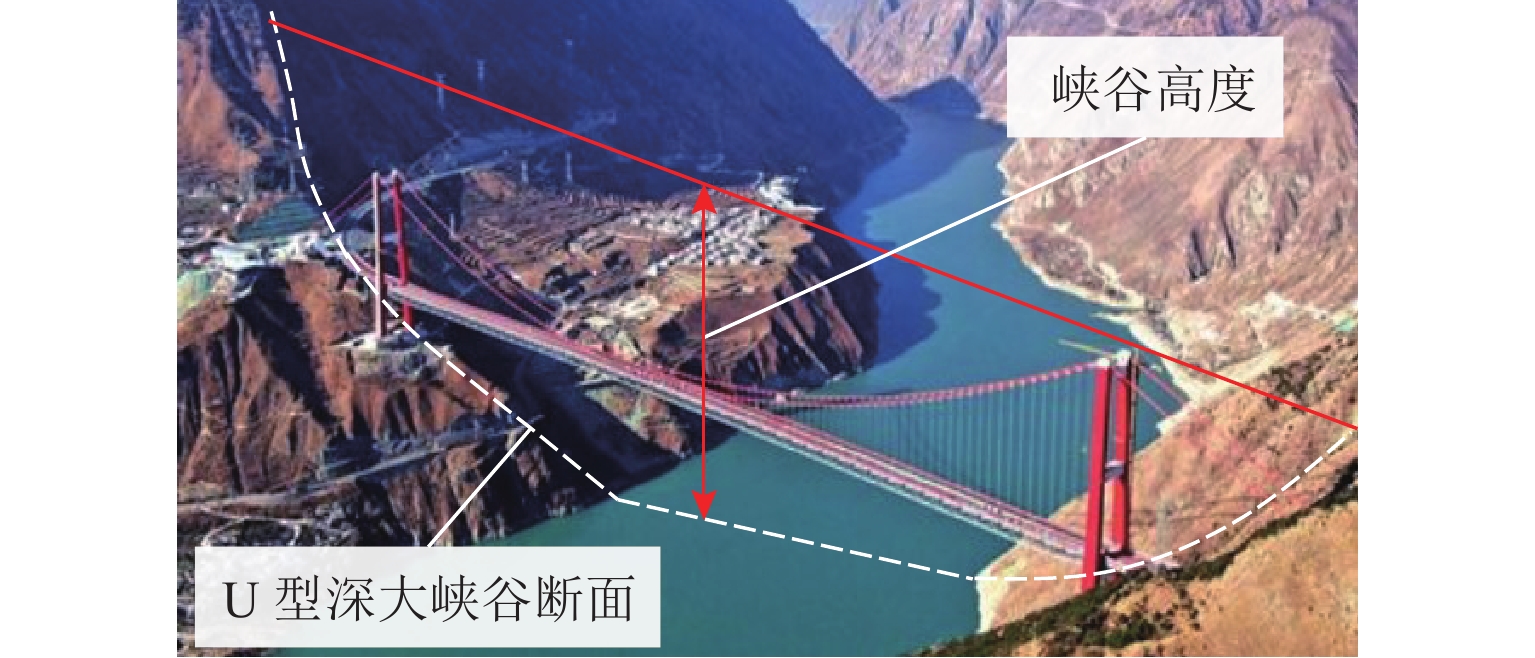

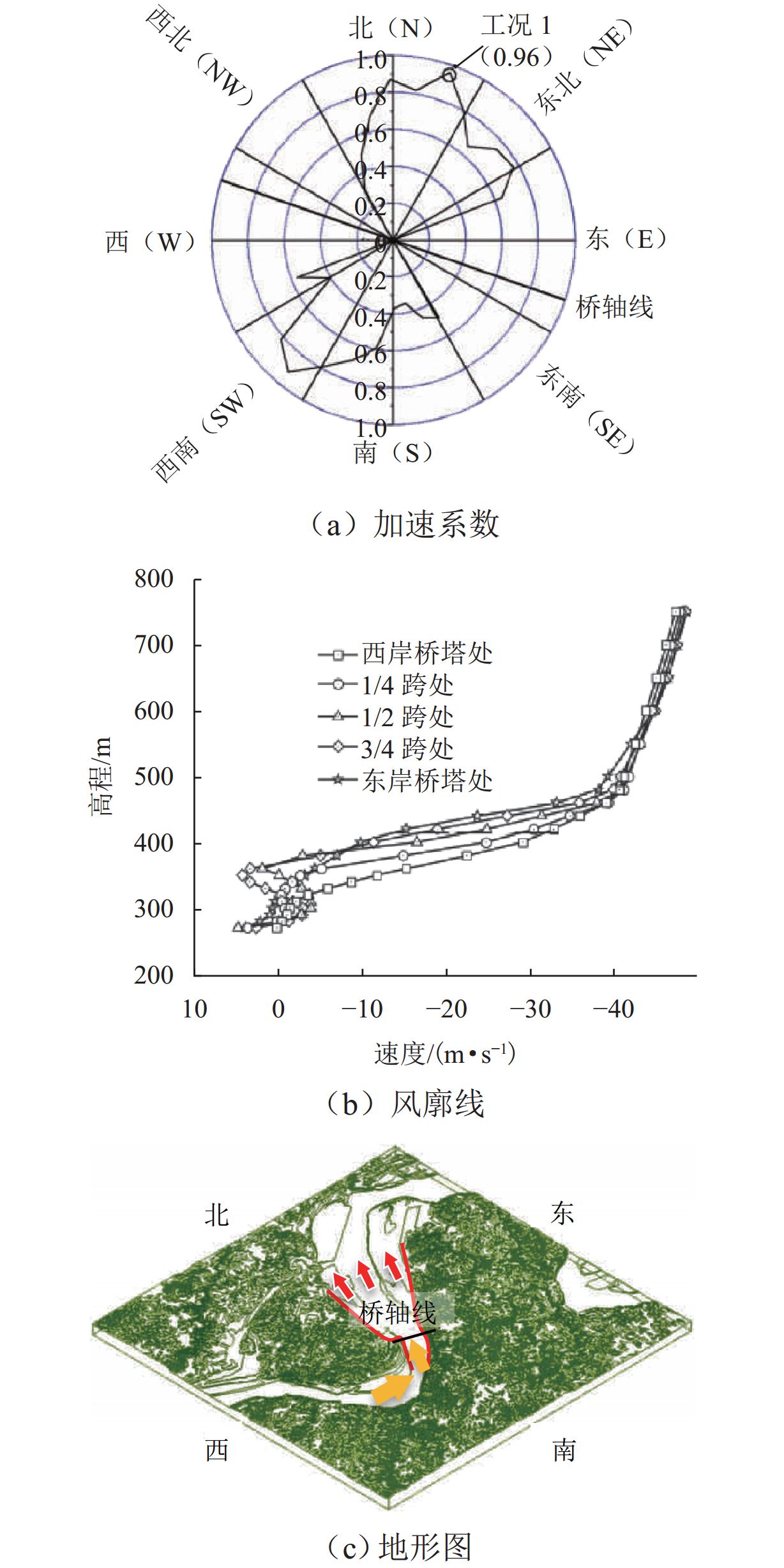

In view of the diverse terrain types and highly variable spatial distributions of wind fields at bridge sites in complex mountainous terrain, engineering-identifiable terrain elements were taken as the main thread, and combined with research results such as field measurements and numerical simulations, a progressive classification framework based on “canyon cross-sectional morphology, canyon channel orientation, and special topography and geomorphology” was constructed. The influence laws of eight typical mountainous bridge site terrains (V-shaped/U-shaped/L-shaped cross-sections, Y-shaped/S-shaped orientations, and funnel-shaped contraction/reservoir-dam area/thermally driven wind) on relevant wind fields were clarified, and a comparative analysis was conducted combined with typical cases. The results indicate that the cross-sectional types determine lateral confinement and spatial non-uniformity; V-shaped deep-cut canyons have stronger near-surface boundary effects on sidewalls; the wind field in U-shaped deep and large canyons is more obviously constrained by channels; L-shaped canyons result in a non-uniform spatial distribution of the wind field under the influence of asymmetric terrains. Channel turning and confluence easily form acceleration and over-mountain transport; Y-shaped channels form a downstream acceleration zone accompanied by drastic variations in the vertical angle of attack; S-shaped sharp bends lead to wind speed enhancement after turning and reconstruction of the horizontal angle of attack. Among special geomorphologies, funnel-shaped contraction induces convergent strong winds; water level variation in reservoir-dam areas can cause large-angle-of-attack climbing in the near-dam area, while weakening the squeeze acceleration and smoothing the approach flow in the far field; thermally driven winds form clear diurnal cycle characteristics; the temperature difference over the underlying surface of snow mountains can enhance the convergence toward the valley floor. The constructed framework can support the rapid discrimination of wind environments and the identification of adverse working conditions at mountainous bridge sites and provides a reference for the wind-resistant design of mountainous bridges.
| [1] |
新华社. 中共中央 国务院关于新时代推进西部大开发形成新格局的指导意见[R]. 北京: 中华人民共和国国务院公报, 2020.
|
| [2] |
中华人民共和国交通运输部. 2024年交通运输行业发展统计公报[R]. 北京: 中国交通报, 2025.
|
| [3] |
李永乐, 喻济昇, 张明金, 等. 山区桥梁桥址区风特性及抗风关键技术[J]. 中国科学(技术科学), 2021(5): 530-542. doi: 10.1360/SST-2020-0151
LI Yongle, YU Jisheng, ZHANG Mingjin, et al. Wind characteristics of a bridge site and wind-resistance key technology in complex mountains[J]. Scientia Sinica (Technologica), 2021(5): 530-542. doi: 10.1360/SST-2020-0151
|
| [4] |
HUANG G Q, JIANG Y, PENG L L, et al. Characteristics of intense winds in mountain area based on field measurement: Focusing on thunderstorm winds[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2019, 190: 166-182. doi: 10.1016/j.jweia.2019.04.020
|
| [5] |
YU C J, LI Y L, ZHAI G H. Time-frequency attention mechanism-based model for enhancing wind speed prediction accuracy[J]. Expert Systems with Applications, 2025, 265: 126038. doi: 10.1016/j.eswa.2024.126038
|
| [6] |
黄国庆, 彭留留, 廖海黎, 等. 普立特大桥桥位处山区风特性实测研究[J]. 西南交通大学学报, 2016, 51(2): 349-356.
HUANG Guoqing, PENG Liuliu, LIAO Haili, et al. Field measurement study on wind characteristics at Puli great bridge site in mountainous area[J]. Journal of Southwest Jiaotong University, 2016, 51(2): 349-356.
|
| [7] |
朱乐东, 任鹏杰, 陈伟, 等. 坝陵河大桥桥位深切峡谷风剖面实测研究[J]. 实验流体力学, 2011, 25(4): 15-21.
ZHU Ledong, REN Pengjie, CHEN Wei, et al. Investigation on wind profiles in the deep gorge at the balinghe bridge site via field measurement[J]. Journal of Experiments in Fluid Mechanics, 2011, 25(4): 15-21.
|
| [8] |
陈政清. 工程结构的风致振动、稳定与控制[M]. 北京: 科学出版社, 2013.
|
| [9] |
张明金, 李永乐, 唐浩俊, 等. 高海拔高温差深切峡谷桥址区风特性现场实测[J]. 中国公路学报, 2015, 28(3): 60-65. doi: 10.3969/j.issn.1001-7372.2015.03.008
ZHANG Mingjin, LI Yongle, TANG Haojun, et al. Field measurement of wind characteristics at bridge site in deep gorge with high altitude and high temperature difference[J]. China Journal of Highway and Transport, 2015, 28(3): 60-65. doi: 10.3969/j.issn.1001-7372.2015.03.008
|
| [10] |
彭留留. 非平稳极端风实测、建模和模拟及高层建筑风致响应研究[D]. 成都: 西南交通大学, 2017.
|
| [11] |
葛盛昌, 蒋富强. 兰新铁路强风地区风沙成因及挡风墙防风效果分析[J]. 铁道工程学报, 2009, 26(5): 1-4.
GE Shengchang, JIANG Fuqiang. Analyses of the causes for wind disaster in strong wind area along Lanzhou-Xinjiang railway and the effect of windbreak[J]. Journal of Railway Engineering Society, 2009, 26(5): 1-4.
|
| [12] |
SU Y W, HAN G W, CHENG X, et al. Characteristics of intense winds with significant variability in a mountainous valley of the Tibetan Plateau based on field measurement[J]. Physics of Fluids, 2024, 36(7): 075163. doi: 10.1063/5.0219726
|
| [13] |
ZHANG J X, ZHANG M J, JIANG X L, et al. Pair-Copula-based trivariate joint probability model of wind speed, wind direction and angle of attack[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2022, 225: 105010. doi: 10.1016/j.jweia.2022.105010
|
| [14] |
ZHANG M J, ZHANG J X, CHEN H Y, et al. Probabilistic wind spectrum model based on correlation of wind parameters in mountainous areas: Focusing on von Karman spectrum[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2023, 234: 105337. doi: 10.1016/j.jweia.2023.105337
|
| [15] |
蔡康, 黄铭枫, 王彦博, 等. 基于平稳与非平稳模型的台风湍流风场参数特征研究[J]. 东南大学学报(自然科学版), 2025, 55(5): 1291-1300. doi: 10.3969/j.issn.1001-0505.2025.05.009
CAI Kang, HUANG Mingfeng, WANG Yanbo, et al. Research on statistical parameters of turbulent wind fields based on stationary and nonstationary models[J]. Journal of Southeast University (Natural Science Edition), 2025, 55(5): 1291-1300. doi: 10.3969/j.issn.1001-0505.2025.05.009
|
| [16] |
霍小帅, 刘堂红, 陈晓栋, 等. 基于侧风下列车表面多点压力信息的气动力预测研究[J]. 中南大学学报(自然科学版), 2025, 56(7): 3020-3033. doi: 10.11817/j.issn.1672-7207.2025.07.034
HUO Xiaoshuai, LIU Tanghong, CHEN Xiaodong, et al. Aerodynamic force prediction research based on multi-point pressure information on train surface under crosswind[J]. Journal of Central South University (Science and Technology), 2025, 56(7): 3020-3033. doi: 10.11817/j.issn.1672-7207.2025.07.034
|
| [17] |
张明金, 颜庭辕, 吴联活, 等. 中央稳定板对流线型箱梁颤振 “等效风攻角” 影响研究[J]. 东南大学学报(自然科学版), 2025, 55(5): 1373-1379. doi: 10.3969/j.issn.1001-0505.2025.05.018
ZHANG Mingjin, YAN Tingyuan, WU Lianhuo, et al. Influence of central stabilization plates on the flutter “equivalent wind attack angle” of streamlined box girders[J]. Journal of Southeast University (Natural Science Edition), 2025, 55(5): 1373-1379. doi: 10.3969/j.issn.1001-0505.2025.05.018
|
| [18] |
中华人民共和国交通运输部. 公路桥梁抗风设计规范: 3360-01—2018[S]. 北京: 人民交通出版社, 2018.
|
| [19] |
靖洪淼. 山区峡谷桥位风场特性数值模拟和现场实测研究[D]. 成都: 西南交通大学, 2020.
|
| [20] |
JIANG F Y, ZHANG M J, LI Y L, et al. Field measurement analysis of wind parameters and nonstationary characteristics in mountainous terrain: Focusing on cooling windstorms[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2022, 230: 105175. doi: 10.1016/j.jweia.2022.105175
|
| [21] |
ZHANG M J, ZHANG J X, JIANG F Y, et al. Combined wind profile characteristics based on wind parameters joint probability model in a mountainous gorge[J]. Natural Hazards, 2023, 115(1): 709-733. doi: 10.1007/s11069-022-05571-w
|
| [22] |
李永乐, 胡朋, 蔡宪棠, 等. 紧邻高陡山体桥址区风特性数值模拟研究[J]. 空气动力学学报, 2011, 29(6): 770-776. doi: 10.3969/j.issn.0258-1825.2011.06.014
LI Yongle, HU Peng, CAI Xiantang, et al. Numerical simulation of wind characteristics above bridge site adjacent a high-steep mountain[J]. Acta Aerodynamica Sinica, 2011, 29(6): 770-776. doi: 10.3969/j.issn.0258-1825.2011.06.014
|
| [23] |
李永乐, 遆子龙, 汪斌, 等. 山区Y形河口附近桥址区地形风特性数值模拟研究[J]. 西南交通大学学报, 2016, 51(2): 341-348. doi: 10.3969/j.issn.0258-2724.2016.02.013
LI Yongle, TI Zilong, WANG Bin, et al. Numerical simulation of wind characteristics over bridge site near Y-shaped river junction in mountainous area[J]. Journal of Southwest Jiaotong University, 2016, 51(2): 341-348. doi: 10.3969/j.issn.0258-2724.2016.02.013
|
| [24] |
YAN T Y, QIN J X, ZHANG M J, et al. Investigation of wind profile and turbulent transport patterns in complex mountainous terrain based on clustering analysis[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2026, 268: 106289. doi: 10.1016/j.jweia.2025.106289
|
| [25] |
吴联活, 张明金, 李永乐, 等. 复杂山区地形桥址区风特性的数值模拟[J]. 西南交通大学学报, 2019, 54(5): 915-922.
WU Lianhuo, ZHANG Mingjin, LI Yongle, et al. Numerical simulation of wind characteristics at bridge sites in complex mountainous terrains[J]. Journal of Southwest Jiaotong University, 2019, 54(5): 915-922.
|
| [26] |
余佳昕. 复杂山区桥址区平均风特性及上下游风场分布研究[D]. 成都: 西南交通大学, 2021.
|
| [27] |
张明金, 邢龙飞, 蒋帆影, 等. 漏斗型峡谷桥址区平均风特性的数值模拟[J]. 西南交通大学学报, 2023, 58(2): 381-387.
ZHANG Mingjin, XING Longfei, JIANG Fanying, et al. Numerical simulation of mean wind characteristics at bridge site in funnel-shaped canyon terrain[J]. Journal of Southwest Jiaotong University, 2023, 58(2): 381-387.
|
| [28] |
王云飞, 汪斌, 李永乐. 复杂山区水库蓄水影响下的库区桥址风特性数值模拟研究[J]. 福州大学学报(自然科学版), 2017, 45(4): 466-471. doi: 10.7631/issn.1000-2243.2017.04.0466
WANG Yunfei, WANG Bin, LI Yongle. Numerical simulation of wind characteristics over bridge site in complicated mountains under the influence of reservoir water storage[J]. Journal of Fuzhou University (Natural Science Edition), 2017, 45(4): 466-471. doi: 10.7631/issn.1000-2243.2017.04.0466
|
| [29] |
王云飞, 汪斌, 李永乐. 水库蓄水对山区桥址风特性的影响[J]. 西南交通大学学报, 2018, 53(1): 95-101. doi: 10.3969/j.issn.0258-2724.2018.01.012
WANG Yunfei, WANG Bin, LI Yongle. Influence of reservoir water storage on wind characteristics over bridge site in mountainous area[J]. Journal of Southwest Jiaotong University, 2018, 53(1): 95-101. doi: 10.3969/j.issn.0258-2724.2018.01.012
|
| [30] |
WHITEMAN C D. Observations of thermally developed wind systems in mountainous terrain[M]// Atmospheric Processes over Complex Terrain. Boston: American Meteorological Society, 1990: 5-42.
|
| [31] |
LI Y L, JIANG F Y, ZHANG M J, et al. Observations of periodic thermally-developed winds beside a bridge region in mountain terrain based on field measurement[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2022, 225: 104996. doi: 10.1016/j.jweia.2022.104996
|
| [32] |
JIANG F Y, ZHANG J X, ZHANG M J, et al. Field measurement study on classification for mixed intense wind climate in mountainous terrain[J]. Measurement, 2023, 217: 113064. doi: 10.1016/j.measurement.2023.113064
|
| [33] |
YAN T Y, QIN J X, ZHANG M J, et al. Field measurement analysis of wind profiles in mountainous terrain: focusing on periodic thermally-developed winds[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2025, 262: 106108. doi: 10.1016/j.jweia.2025.106108
|
| [34] |
JIANG F Y, ZHANG J X, ZHANG M J, et al. Determination of extreme wind speed under different wind directions and attack angles with mixed wind climates in mountain terrain[J]. Stochastic Environmental Research and Risk Assessment, 2023, 37(12): 4589-4606. doi: 10.1007/s00477-023-02529-7
|
| [35] |
李永乐, 张明金, 徐昕宇, 等. 高海拔高温差深切峡谷桥址区日常大风成因[J]. 西南交通大学学报, 2014, 49(6): 935-941. doi: 10.3969/j.issn.0258-2724.2014.06.001
LI Yongle, ZHANG Mingjin, XU Xinyu, et al. Causes of daily strong wind on bridge site in deep gorge with high altitude and high temperature difference[J]. Journal of Southwest Jiaotong University, 2014, 49(6): 935-941. doi: 10.3969/j.issn.0258-2724.2014.06.001
|
